Model

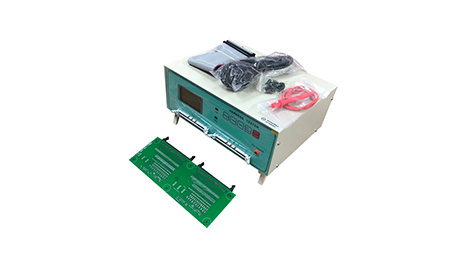

JCW-Q01 Multi-function Wire Continuity Tester

Function

Short circuit, Open circuit, Dislocation, Momentary short/open circuit

Test mode

Automatic/Manual mode, Ins.Test (Bending) Test, Loop (cycling) Test, Segment Test. Pin search.

Capacity

64 / 128 test points

Cycle time

<0.1 second

Wire harness typeSingle-end, dual-end
Test voltageDC 5V
Test current< 20mA
Test standard

1K, 2K, 5K, 10K, 50K

File saving

Read and save standard

Ambient temperature

Work: 0 - 40℃.

Stock: -40 - 75℃,0 - 85% R.H
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz, <10 W
DimensionsL 310 x W 250 x H 135 mm
Weight3 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
