Bootlace Ferrule Crimping Machine

Bootlace Ferrule Crimping Machine

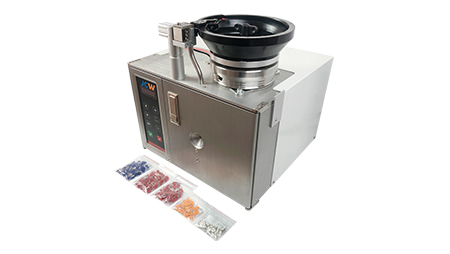

JCW-F2 Automatic Stripping and Crimping Machine

Compact, lightweight, precise, robust, simple operation


Reliable and precise

The JCW-F2 automatic stripper crimper machine by JCW is an ideal electro-pneumatic controlled stripping & crimping machine for processing insulated end sleeves (ferrule). It provides efficient processing of loose wire end sleeves with plastic collars in different lengths. The use of premium components in combination with a robust construction ensures reliable operation.


Easy to use

The JCW-F2 stripping and crimping machine covers bootlace ferrule at different cross-sections ranging from 0.5 to 2.5 mm². The JCW-F2 strip and crimp machine is equipped as standard with tooling for different cross-sections and lengths.

ModelJCW-F2 Automatic Insulated End Sleeve Stripping and Crimping Machine
Function

Single wire, Multicore cable, Wire end stripping, Tubular insulated terminal crimping, Quadrangle crimping, Stripping length, Cutting depth, Data library

Conductor cross-section
0.5, 0.75, 1.0, 1.5 / 2.5 mm² [ changing vibrate bowl ]
Stripping length
Max 17 mm
Crimping shapeQuadrilateral [ imitating square ]
Crimping length6 - 12 mm
Cycle time1.8 seconds
Air supply0.6 - 0.8 MPa ( clean and dry air )
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions
L 390 x W 380 x H 390 mm
Weight32 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
