13kN Portable Pneumatic Type Terminal Crimper

JCW-320E

Pneumatic crimping machine

13KN crimping force, updated model based on 320

4 sets of the crimp die sets

Dozens of die sets for selection

Fast crimp die sets changeover

25 mm² bootlace ferrule

10 mm² tubular terminal

Inquire Now

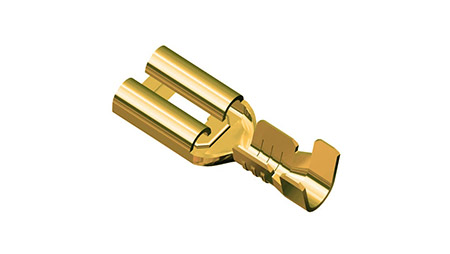

Open-barrel terminal crimping

JCW-320E Pneumatic Type Terminal Crimping Machine

13KN crimping force, fast change crimp die sets

The JCW-320E pneumatic terminal crimping machine is a lightweight and portable model designed for flexible workshop use. It uses compressed air to deliver consistent crimp force, making it suitable for regular terminal processing tasks in different production positions.

This machine supports quick-change crimp dies, allowing operators to replace dies easily and adapt to a wide range of terminal types and specifications.

Its flexible structure is especially useful for small-batch orders and multi-variety harness production, where frequent specification changes are required.

The pneumatic design provides stable and repeatable crimp results, while the compact body makes it easy to move and arrange at different workstations.

With simple operation and fast die change, it helps improve efficiency in diversified wiring tasks. Widely used in electrical assembly, control wiring, distribution and new energy harness processing.

Model	JCW-320E Portable Pneumatic Type Terminal Crimping Machine
Function	Open barrel, closed barrel, loose terminal, fast change die set.
Cable range	Bootlace ferrule: 25 mm²
Cable range	Tubular terminal: 10 mm²
Crimping force	13 KN
Crimp dies sets	4 sets
Air regulator	Yes
OEM	Yes
Activation	Foot pedal
Air supply	0.4 - 1.0 MPa ( clean and dry air )
Dimensions	L 230 x W 187 x H 100 mm
Weight	5.5 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
