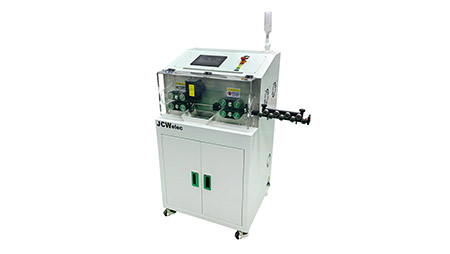

Computerized Cutting and Stripping Machine For 50mm² Cable

JCW-CS05D

Discharge rollers automatically raised during stripping

Fully electric, no compressed air needed

Servo motorized cable feeding system

Servo motorized cable cutting structure

Fully programmable English software

200 programs data library

Inquire Now

Cut Strip Machine

Model	JCW-CS05D Computerized Cutting and Stripping Machine For 50mm² Cable
Function	Fully electric, Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Capacity	2.5 - 50 mm²
Cable O.D	Max 16 mm
Cable guide	4 sets equipped. I.D 7 / 10 / 13 / 17 mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front full strip: 0 - 250mm
Stripping length	Rear full strip: 0 - 150mm
Production rate	1500-2500 pcs/h
Data library	200 programs
Cutter head	Servo motorized
Rated power	800 W
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	Servo motorized belt feeding system, 12 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt, cable rewinding machine, cable slit device, inkjet printer, hot stamp marker
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 650 x W 550 x H 1100 mm
Weight	105 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
