0.3 - 16mm² Wire Stripping Twisting Ferrule Crimping Machine

JCW-F16

1 vibrator bowl for all ferrules ranging from 0.3 to 16 sqmm

Stripping length up to 30mm

Crimping length up to 20mm

Servo motor control

User-friendly, robust and compact design

Crimp force monitor is compatible

Top cover sensor is optional

Inquire Now

Insulated Wire Ferrule Crimping

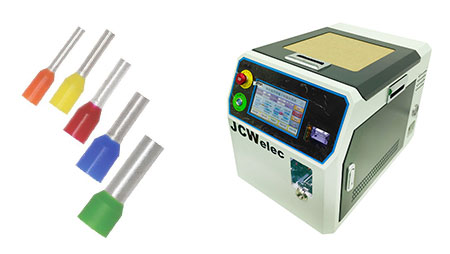

JCW-F16 0.3 - 16mm² Wire Stripping Twisting Ferrule Crimping Machine

JCW-F16 is a servo-driven automated all-in-one termination station built for bootlace ferrule assemblies. It adopts a single universal vibratory feeding system compatible with all standard bootlace ferrules.

One feeder covers most common ferrule variants, streamlining specification switching and reducing production changeover time.

Servo motor control delivers precise, adjustable motion for stripping, twisting and crimping actions.

The machine completes these three processes sequentially within one working cycle.

Its native operating scope supports conductors from 0.5 mm² up to 16 mm².

Processing for ultra-fine 0.3 mm² wire is achievable upon request with custom tooling.

The feeder precisely positions ferrules, while the twisting module neatly consolidates stranded copper conductors into tidy bundles ahead of crimping.

Servo closed-loop control stabilizes crimp depth and stripping dimensions, maintaining dependable electrical contact and repeatable crimp dimensions during continuous high-volume harness production.

Engineered for industrial batch manufacturing, it is well suited for power cabinet wiring, heavy-duty control circuits and panel harness fabrication with frequent mixed ferrule specifications.

Model	JCW-F16 Servo Model Automatic Wire Ferrule and Wire Crimping Machine
Function	Single wire, Multicore cable, Wire end stripping, Conductor twisting, Tubular insulated terminal crimping, Quadrangle crimping, Stripping length, Cutting depth, Data library
Conductor cross-section	0.3 (custom), 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0, 10, 16 mm² [ adjusting vibrate bowl ]
Stripping length	6-30 mm
Crimping profile	Quadrilateral [ imitating square ] [ customizable ]
Crimping length	Max 20 mm
Cycle time	3.2 seconds
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Customize logo	Yes
Air supply	0.6 - 0.8 MPa ( clean and dry air )
Rated power	1500 W
Operate temperature	0～35℃
Operating humidity	30～80 HR
Power supply	AC 220V ± 10%, 10A, 50 / 60 Hz
Dimensions	L 365 x W 522 x H 430 mm
Weight	65 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
