Benchtop Multicore Cable Strip & Crimp Machine

JCW-2TH

Wire stripping & crimp press are separate

Parallel transfer stripped wire to crimp applicator

Low investment, compatible with current applicators

High accuracy specific terminal crimping applicator

Touch screen, user-friendly software

Robust & compact design

Crimp force monitor device is compatible

Inquire Now

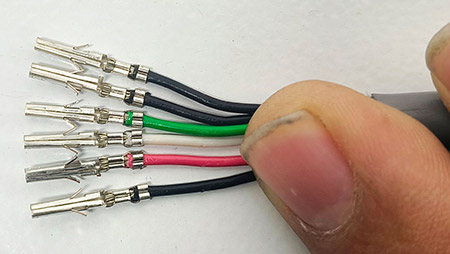

Multi-conductor Cable Strip-Crimp Machine

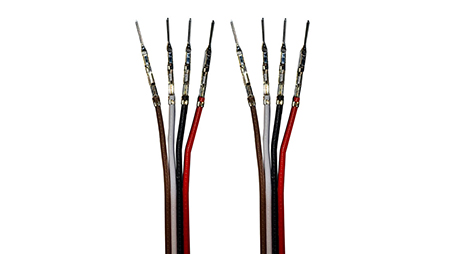

Flat Ribbon Cable Strip & Crimp

Benchtop Multicore Cable Strip & Crimp Machine

JCW-2TH is the tabletop variant designed for multi-core sheathed cable termination.

It handles inner core stripping and conductor straightening and alignment ahead of crimping, following the same core preparation workflow as our floor model.

Wire arranging fixtures remain custom-built to match each cable’s core arrangement.

Crimp force monitoring is not standard; it is an optional module that customers may select for quality traceability and bad-crimp detection.

Its compact desktop footprint fits neatly onto standard workbenches, ideal for low-to-medium volume harness stations with limited floor space.

Well suited for small batches, prototype runs and job-shop harness production of multi-core sheathed control cables.

Model	JCW-2TH Multicore Cable Strip & Crimp Machine
Function	Multiconductor cable, Wire stripping, Terminal crimping, Side/horizontal feed terminal, OTP crimp applicator, mini-style crimp applicator
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force	2 tons [ Customizable ]
Conductor cross-sections	AWG 28 - 16
Sheath pre-strip length	25 - 50 mm
Inner stripping length	1.5 - 8.8 mm
Press stroke	30 mm [ 40mm is optional ]
Rated power	800 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Dimensions	L 650 x W 450 x H 700 mm
Weight	120 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
