Pre-insulated Ring Terminal Fork Terminal Crimping Machine

JCW-F3 RING

Capacity range 0.5 to 6.0 mm²

Insulated ring terminal, fork terminal

Servo motor, ball screw, terminal crimp machine

Wire stripping, condcutor twisting, terminal crimping, 3 in 1

Vibrate bowl feeds terminal, fully programmable & adjustable

Alarm when terminal used out, touch screen, English display

Inquire Now

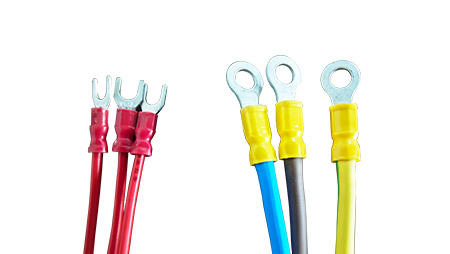

Fork / Ring Terminal Crimping

Model	JCW-F3 RING Pre-insulated Ring Terminal Fork Terminal Crimping Machine
Function	Single wire, Multicore cable, Wire end stripping, Conductor twisting, fork/ring terminal, Stripping length, Cutting depth, Data library
Conductor cross-section	0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 mm²
Stripping length	6-18 mm
Multicore cable prepare	Outer sheath stripping length minimum 40 mm
Crimping length	6 - 12 mm
Cycle time	2.5 seconds, 1000 - 1300 pcs / hr
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Customize logo	Yes
Rated power	750 W
Air supply	0.6 - 0.8 MPa ( clean and dry air )
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 550 x W 500 x H 420 mm
Weight	98 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
