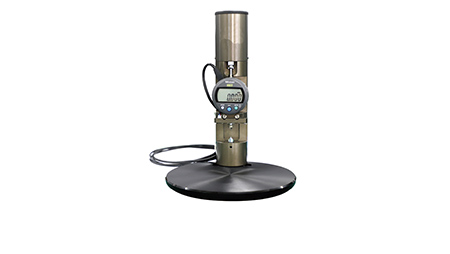

Terminal Crimp Height Measurement Device

JCW-QCH

High precision crimp height measurement

Space-saving & portable design

Simple operation replaces manual measurement

LED lamp, lighted work area

Measuring height: 0 - 10 mm

Measuring accuracy: 0.001 mm

Air supply: 0.4 - 0.5 MPa

Support software only on request

Inquire Now

Terminal Crimp-height Measuring Instrument

Model	JCW-QCH Terminal Crimp Height Measurement Device
Measure range	Max 10 mm
Accuracy	0.01 mm
Dimensions	L 200 X W 200 x H 300 mm
Weigth	2 kg
Air supply	0.4 -0.6 MPa
Power supply	DC 24V
