Fully-auto Wire Stripping Crimping & Sleeve Printing Shrinking Machine

JCW-CST18P

Heat shrinkable sleeve printing, insertion & shrinking

Thermal transfer printer, single or double-head

Insulated or non-insulated terminal

Side-feed or end-feed terminal

OTP crimping applicator or mini-style applicator

Highly flexible and customizable machine

Inquire Now

Automatic Heat Shrink Tube Printing & Shrinking Machine

The JCW-CST18P is an automatic wire terminating machine upgraded from the JCW-CST18D.

2 sets of thermal transfer printers and corresponding printing software are added, you can freely edit the content and programs.

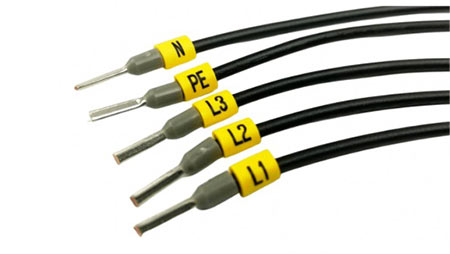

This all-in-one equipment automatically completes double-end terminal crimping, heat shrink tube sleeving, thermal transfer marking on heat shrink tubes and tube heating shrinking in one cycle. It combines multiple separate wire harness processing procedures into a single workstation to reduce manual handling and cut production costs.

With stable crimping quality and clear, permanent printed marks on heat shrink sleeves, the machine ensures consistent output for mass cable manufacturing. It is widely used for automotive wiring harnesses, electronic cables and electrical cable assemblies, ideal for manufacturers who need automated multi-function wire termination solutions.

The JCW-CST18P allows optional addition of CFM module. The CFM module performs real-time crimp force monitoring to detect crimping anomalies and reject defective terminals, ensuring reliable harness quality. It can process both pre-insulated terminals and ordinary terminals with a wide processing range to meet diversified wire harness production requirements.

Model	JCW-CST18P Fully-auto Wire Stripping Crimping & Sleeve Printing Shrinking Machine
Function	Single/dual end stripping, Full stripping, Partial stripping, Single/Dual end terminal crimping, Heat shrink tubing cutting, marking, insertion & shrink, Cut depth, Pull-off length.
Wire range	AWG 22 - AWG 14
Raw material	PVC, Teflon, Low halogen, etc.
Crimp force	2 tons [ 20 KN ]
Cut length ( L )	75 - 99999 mm [ depends on terminal type and tubing length ]
Cut length tolerance	0.2mm ± 0.002 x L
Strip length	Front side: 0.5 - 8 mm
Strip length	Rear side: 0.1 - 10 mm
Production rate	800-1000 pcs/h by 150mm cutting length
Data library	300 recipes
Printing device	Thermal transfer printer
Detector	Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Optional peripherals	CFM, Wire prefeed machine, Motorized conveyor belt
Display	10" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 / 220V ± 10%, 50 / 60 Hz
Rated power	3500 W
Air supply	0.5 - 0.8 MPa [ Clean and dry air ]
Weight	800 KG
Dimensions	L 1800 x W 800 x H 1600 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
