Dual-end Wire Cutting & Stripping, Sealing to Terminating Machine

JCW-CST17B

Inquire Now

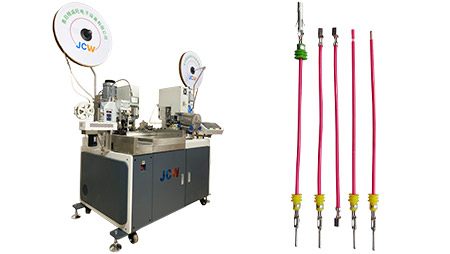

High Price-to-Performance Ratio Sealing Machine

Model	JCW-CST17B Automatic Seal Insertion to Terminal Crimping Machine
Function	Wire measuring and cutting into length, stripping, seal insertion, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detection and sort out defective product
Raw material	AV, AVS, AVSS, CAVUS, KVKIV, UL
Conductor cross-section	0.2 - 2.5 mm²
Cut length ( L )	35 - 99999 mm [ Minimum insulation length 17mm, can be custom ]
Cut length accuracy	0.1 mm ± 0.005 x L
Strip length	Front end: 18 mm Rear end: 20 mm [ can be custom ]
Crimping force	2 tons [ can be custom ]
Display	7" Color touch screen, English / Chinese [ other languages on request ]
Data library	100 programs
Product rate	1900 pcs/h by 100 mm wire length [ Sealing & Crimping ]
Optional peripherals	CFM, CCD, Wire prefeeder, Wire stacker
Rated power	2000 W
Air supply	0.4-0.8 MPa [ clean and dry air ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 1400 x W 920 x H 1500 mm
Weight	600 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
