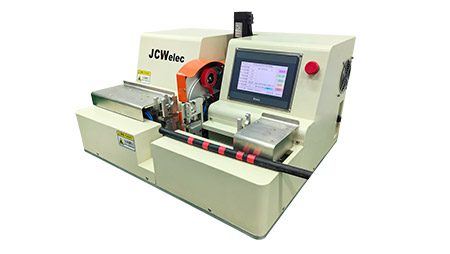

Automatic Automotive Wire Harness Taping Machine

JCW-T01C

Spot taping, full taping, multi-section taping

Fully programmable, fully automatic, increased precision & efficiency

7" color touch screen, English operation display, easy programming

Automatically pull harness to pre-set taping position, automatic taping & cutting

Neat taping, perfect taping quality meets the demanded requirements

Wrapping turns and wrapping positions all programmable

Inquire Now

Automotive Wire Harness Taping Machine

Model	JCW-T01C Automatic Automotive Wire Harness Taping Machine
Function	Bundling, insulating, marking. Tape cutting, wire harness pulling.
Tape width	10 - 20 mm
Tape roll diameter	I.D. 38 mm, O.D. 96 mm
Capacity	Square: max 10 x 20 mm Round: max 20 mm diameter
Cycle time	8 - 30 seconds
Display	7" HMI, English / Chinese
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Power supply	AC 110 - 220 V, 50 / 60 Hz
Dimensions	L 760 x W 630 x H 500 mm
Weight	75 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
