Custom Automatic Spot Taping Machine

JCW-T01D

Automatically wrapping and cutting tape

Programmable wrapping turns, taping position

Covering a wide range of tape types

Acetate cloth tape, aluminum foil tape, duct tape

Masking tape, PVC tape, fleece tape, transparent tape

Inquire Now

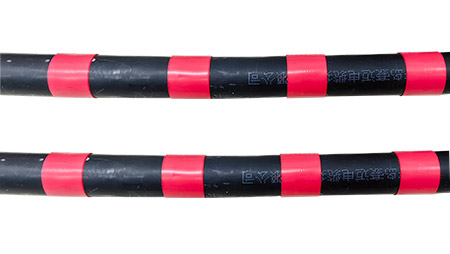

Automatic Spot Taping

Model	JCW-T01D Custom Automatic Spot Taping Machine
Function	Bundling, insulating, marking
Tape width	10 - 20 mm
Tape roll diameter	I.D. 38 mm, O.D. 96 mm
Capacity	Square: max 10 x 20 mm Round: max 20 mm diameter
Cycle time	8 - 30 seconds
Display	7" HMI, English / Chinese
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Power supply	AC 110 - 220 V, 50 / 60 Hz
Dimensions	L 760 x W 630 x H 500 mm
Weight	65 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
