Specifically designed for cutting braided fuel hose
Vertical cut without unraveling braid
Taping parameters are fully programmable
Increased production efficiency
JCW-C815
Specifically designed for cutting braided fuel hose
Vertical cut without unraveling braid
Taping parameters are fully programmable
Increased production efficiency

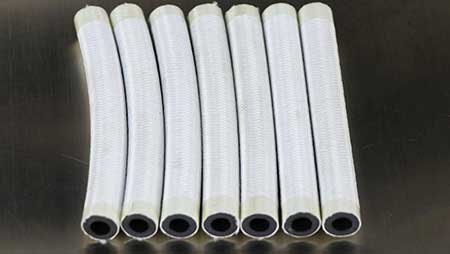

PTFE Nylon Braided Oil Hose Taping & Cutting
| Model | JCW-C815 PTFE Nylon Braided Fuel Hose Taping Cutting Machine |
| Tape width | 10 - 20mm |
| Tape type | Inelastic adhesive tape |
| Taping diameter | 8 - 15mm |
| Taping turns | Programmable |
| Taping cycle time | 4 seconds |
| Length accuracy | ± 1mm [ cutting length <1000mm ] |
| Feeding speed | 1 m/s |
| Cutting accuracy | ± 0.5mm |
| Cutter stroke | 85 mm |
| Product rate | 650 - 700 pcs/h |
| MES connection | Yes |
| Air supply | 0.6 MPa |
| Power supply | AC 110 - 220V + 10 %, 50/60 Hz |
| Rated power | 1800 W |
| Dimensions | L 1700 x W 600 x H 1500 mm |
| Weight | 380 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
