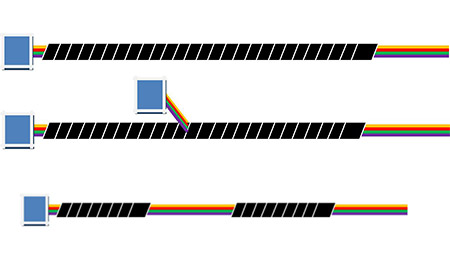

How to Tape Harness With Housing Connector

How to Tape Harness With Housing Connector

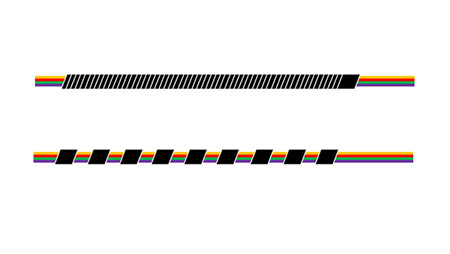

Fully / Partial Taping

Fully / Partial Taping

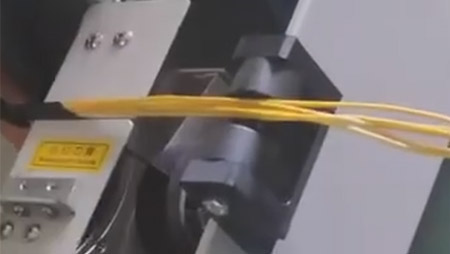

Wire Harness Guide

Wire Harness Guide

JCW-T03 Automatic Roller Feed Wire Taping Machine

All-round solution for various taping needs, high cost-effective machine


Flexible wire harness taping machine

The JCW-T03 is a table-top wire and wire harness taping machine, designed for wire, cable, and wire harness bundling, insulating, and marking.

This tape wrapping machine offers 4 taping ways that expand the capacity max.

Different from JCW-T02, this machine uses rollers to feed cable, which allows continuous long taping.

Spot taping is also available on the JCW-T03 taping machine. You only need to set taping turns and taping speed.

The JCW-T03 cable taping machine also does multi-section taping, the taping position and taping lengths are all settable easily.

Unique sequence taping function allows multi-spot taping by following the saved program.


User-friendly HMI, safe operation

The JCW-T03 is equipped with user-friendly HMI, the language is changeable from English to others by customers' requirements.

A transparent safety cover is fitted above the rotation unit to protect the operator. A compressed air supply is all that needed to activate it.


Customizable Taping Machine

We supply customizable taping solutions for the wire harness industry. Please contact us if you have any special taping requirements.





Model

JCW-T03 Automatic Roller Feed Wire Taping Machine

FunctionBundling, insulating, and marking. Full / spot / multi-section / sequence taping.
Tape width5 - 25 mm, Customizable
Tape roll diameter
Inner diameter: 26 - 38 mm
Outer diameter: 110mm
Wire harness diameter1 - 40 mm
Rated power500 W
Air supply0.3 - 0.5 MPa ( clean and dry air )
Power supplyAC 110 - 220V, 50 / 60 Hz
DimensionsL 560 x W 500 x H 300 mm
Weight45 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
