LCD display, English menu
Data library saves 99 twisting programs
High-speed, 300 - 7500 RPM
Max 20 sections twisting,
Twisting direction and speed are adjustable of each section
JCW-325A
LCD display, English menu
Data library saves 99 twisting programs
High-speed, 300 - 7500 RPM
Max 20 sections twisting,
Twisting direction and speed are adjustable of each section
JCW-325A Electric Wire Twisting Machine

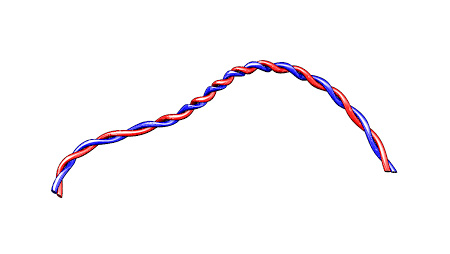

Twist two or more single wires and cables
The JCW-325A motorized wire twisting machine is designed to replace traditional wire twisting by hand or manual tools. This machine uses an electronic control system, the axis is connected to the motor directly with no belt consumption.
Complete industrial-grade protection circuit design to ensure trouble-free operation for more than 20,000 hours.
Complete data protection function, data can be stored permanently.
The machine is capable to carry out multi-section twisting. The twisting speed and direction of each section can be set individually.
Automatic clamping VS Manual clamping
We provide automatic and manual wire clamping methods. The automatic clamping method is suitable for twisting short wires, while the manual clamping method is more suitable for twisting long wires.
Please contact us and our sales staff will provide you with the best twisting solution.
Model | JCW-325A Electric Wire Twisting Machine |
Function | Twist 2 wires into pairs, twist cycles, twist speed, data library, multi-section twisting |
Twisting speed | 300 - 7500 RPM |
Twisting cycles | 0.5 - 9999.9 |
Wire diameter | 2 x 1.2 mm max |
Data library | 99 wire programs |
Multi-section twisting | 20 sections max |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 220 x W 240 x H 290 mm |
Weight | 15 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
