IPEX MHF Connector Crimping Machine

Professionally designed for coaxial wire crimping and riveting

Particular terminals on reel, 0.81mm / 1.13mm / 1.32mm / 1.37mm / 1.78mm cable

Terminal cutting, crimping, forming, and waste cutting at one time

Crimping tool life over 500,000 times

Inquire Now

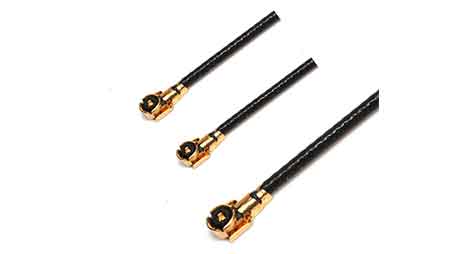

MHF 4, RF 0.81

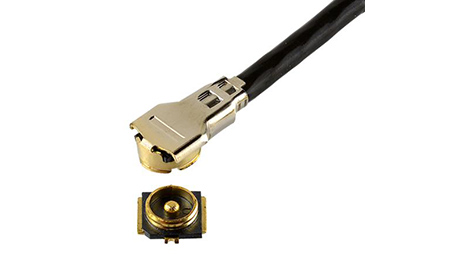

MHF I, RF 1.37

IPEX MHF Connector Crimping Machine

This IPEX MHF coaxial connector crimping machine is a dedicated crimper for RF coaxial harness assembly. It fits widely used RF cable sizes: 0.81mm, 1.13mm, 1.32mm, 1.37mm and 1.78mm. We recommend one machine for only one type of terminal. This dedicated-use design avoids frequent die adjustment errors and keeps repeatable, stable crimping quality for RF signal performance. Benchtop compact structure, ideal for antenna, communication module and wireless RF harness production lines.

Model	IPEX MHF Connector Crimping Machine
Function	Coaxial cable, female IPEX connector
Cable O.D.	0.81mm / 1.13mm / 1.32mm / 1.37mm / 1.78mm
Product rate	≈1600 pcs
Terminal feeding	Motor control
Noise level	<70db（A)
Power supply	AC 110-220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.7 MPa
Dimensions	L 480 x W 600 x H 210 mm
Weight	10 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
