Micro Coaxial Cable Automatic Cutting & Stripping Machine

JCW-CS600A

Micro coaxial cable 0.64 to 4.0mm diameter

Rotary cutter head, single-conductor wire, multicore cable

Long stripping length up to 200mm

High production rate 1300 pcs per hour

Automatic product line, professional cable prefeeder

Inquire Now

JCW-CS600A Micro Coaxial Cable Automatic Cutting & Stripping Machine

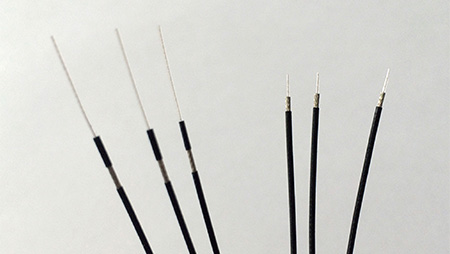

JCW-CS600A high-precision coaxial cable automatic cutting and stripping machine is specially designed for micro-coax cable ranging from 0.64 to 4mm.

The fully programmable rotary incision unit allows easy processing of high precision coaxial and multilayer applications.

The JCW-CS600A is ideal for low-volume, quick-changeover applications, and high-volume production runs, giving the best possible flexibility and productivity to your production methods.

Model	JCW-CS600A Micro Coaxial Cable Automatic Cutting & Stripping Machine
Function	Single wire, multicore cable, micro coax cable, cut length, cut depth, data library, workbench
Cable diameter	0.64 - 4.0 mm
Cutting length ( L )	22 - 9999 mm
Cutting accuracy	L ± 1‰
Cut depth increment	0.01 mm
Stripping length	Lead side: max 200mm
Stripping length	Rear side: max 45mm
Stripping length increment	0.01 mm
Stripping steps	6
Product rate	750 - 1300 pcs/h [ Depending on cable type ]
Data library	40 programs
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Rated power	800 W
Display	English / Chinese [ customizable ]
Dimensions	L 760 x W 700 x H 400 mm
Weight	100 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
