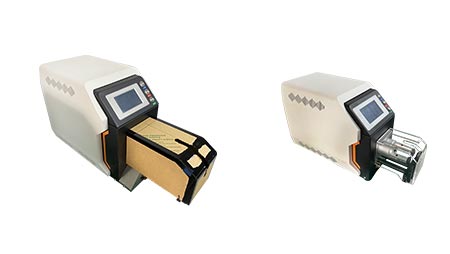

NEW! JCW-S500 Semiautomatic Coaxial Wire Stripping Machines

Rotary stripping, 10 stripping steps


New design, new technology

The JCW-S500 series coaxial wire stripping machines are brand new models for processing various single wire, multiconductor cable, coaxial, triaxial cable, and conductors with braided insulation, especially micro-coaxial cable with thin insulation.


Features

  • Max of 10 stripping steps

  • Fully programmable, the processing steps for multi-layered cable can be programmed in any desired order

  • The cable clamping force, clamping diameter, stripping position and pull-off length of each layer are all adjustable

  • No need for any mechanical adjustments when changing wire sizes

  • Easy to operate, the machine language can be changed by customers' requirements to make its operation easier

  • The intuitive display assists the operator with setting the processing parameters. Parameters such as cut duration, pull-off speed, wire diameter, etc. are all settable respectively.


Three models for selection

   JCW-S500A, cable diameter 0.85 to 7.0 mm, stripping length up to 53 mm

   JCW-S500B, cable diameter 1.5 to 15 mm, stripping length up to 85 mm

   JCW-S500C, cable diameter 3.5 to 23 mm, stripping length up to 200 mm

ModelJCW-S500 Semiautomatic Coaxial Wire Stripping Machine
FunctionCoaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping.
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameterJCW-S500A: 0.5 - 7.5 mm
JCW-S500B: 1.5 - 15 mm
JCW-S500C: 3.5 - 23 mm
Stripping length JCW-S500A: 0.1 - 53 mm
JCW-S500B: 0.1 - 85 mm
JCW-S500C: 0.1 - 200 mm
Cutting depth increment
0.01 mm
BladesJCW-S500A: 2 pcs
JCW-S500B: 4 pcs
JCW-S500C: 4 pcs
Stripping steps10
Production rateJCW-S500A: 700 - 1200 pcs/h
JCW-S500B: 600 - 700 pcs/h
JCW-S500C: 600 - 700 pcs/h
Data library99 programs
OEMYes
PC IntrefaceRS232, Foot pedal
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsJCW-500A: L 540 x W 230 x H 330 mm
JCW-500B: L 640 x W 260 x H 375 mm
JCW-500C: L 960 x W 285 x H 380 mm
Weight25 / 34 / 51 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
