Sheath Cable Cut Strip Twist & Tin Machine

JCW-CST18F

Fully automatic round sheath cable processing equipment

One-step process: Cut → Outer stripping → Inner core stripping → Twist → Tin dipping

High precision servo control, low failure rate

Ideal for multi-core sheathed wire harness manufacturing

Inquire Now

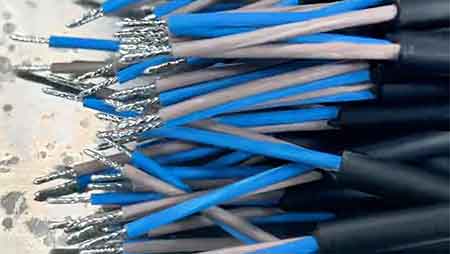

Sheathed Cable Cut Strip Tin Machine

Sheath Cable Cut Strip Twist & Tin Machine

JCW-CST18F fully automatic round sheath cable cut strip twist & tin machine is specially developed for multi-core round sheathed wire harness processing.

This integrated equipment can automatically finish a full workflow including cable fixed-length cutting, outer jacket stripping, inner core insulation stripping, core wire twisting and tin dipping in one cycle.

Equipped with high-performance servo motors and precision control system, it delivers stable stripping length, uniform twisting effect and consistent tin coating thickness, greatly reducing manual operation and improving production efficiency.

It supports processing various types of round multi-core sheathed cables commonly used in electronics, home appliances, sensors and automotive wiring harness industries.

The machine features easy parameter setting on touch screen, adjustable wire processing range, low noise operation and long service life.

We provide factory direct supply, technical support and CE certification for this wire harness processing machine.

Model	JCW-CST18F Sheath Cable Cut Strip Twist & Tin Machine
Cable range	O.D 2.5 - 9 mm
Cut length ( L )	1500 mm [ customizable ]
Front outer stripping	15 - 50 mm [ customizable ]
Front inner stripping	1 - 15 mm
Rear outer stripping	15 - 195 mm
Rear inner stripping	1 - 15 mm
Inner twist length	4 - 15 mm
Tinning length	1 - 15 mm
Production rate	1300 - 2200pcs/h [ rely on cable O.D and parameter settings ]
Smoke collect system	Yes
Optional peripherals	CFM, Wire unwinder
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 220V ± 10%, 50 / 60 Hz
Rated power	4000 W
Air supply	0.5 - 0.8 MPa [ Clean and dry air ]
Weight	800KG
Dimensions	L 4600 x W 970 x H 1330mm [ cutting length 1500mm ]
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
