Fully automatic terminal & heat shrink sleeve processing
Automated solution for multicore sheathed cable
Suitable for all types of open barrel terminals
Fully programmable
Robust, compact
JCW-CST18C
Fully automatic terminal & heat shrink sleeve processing
Automated solution for multicore sheathed cable
Suitable for all types of open barrel terminals
Fully programmable
Robust, compact

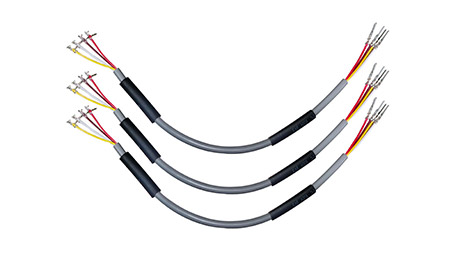

Sheathed Cable Heat Shrinkable Sleeve Solution
The JCW-CST18C is designed for round sheathed cable processing.
It automatically completes double-end inner and outer wire stripping, terminal crimping, and heat shrink tube sleeving in one continuous cycle.
The JCW-CST18C handles the outer sheath and inner core insulation stripping precisely without damaging copper conductors, then crimps terminals and feeds heat shrink sleeves onto finished cable ends. Ideal for mass production of round cable wire harness, it reduces manual steps and ensures stable, repeatable processing quality.
| Model | JCW-CST18C Sheathed Cable Cut Strip & Crimp, Heat Shrinkable Tubing Insert Machine |
| Function | Single/dual end stripping, Full stripping, Partial stripping Single/Dual end terminal crimping, Single/Dual end heat shrink tubing cutting & insertion Cut depth, Pull-off length, Tubing length |
| Wire range | O.D 2 - 6.5 mm |
| Raw material | PVC, Teflon, Low halogen, etc. |
| Crimp force | 2 tons [ 20 KN ] |
| Cut length ( L ) | No tubing applied: 120 - 9999 mm Tubing applied: 150 - 9999 mm |
| Cut length tolerance | 0.2mm ± 0.002 x L |
| Outer strip length | Front 25 - 180 mm, Rear 25 - 120 mm |
| Inner strip length | 1 - 15 mm |
| Tubing length | 12 - 30 mm |
| Tubing O.D | 2.5 - 7.0 mm |
| Production rate | 650 pcs/h |
| Detector | Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure |
| Optional peripherals | CFM, Wire prefeed machine, Motorized conveyor belt |
| Display | 7" touch screen, English / Chinese [ other languages on request ] |
| Power supply | AC 220V ± 10%, 50 / 60 Hz |
| Rated power | 2400 W |
| Air supply | 0.5 - 0.7 MPa [ Clean and dry air ] |
| Weight | 600 KG |
| Dimensions | L 1500 x W 900 x H 1600 mm |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
