Automatic Ribbon Cable Slit, Strip & Terminal Crimp Machine

JCW-CST14

Servo motorized automatic terminal crimping machine for ribbon cables

Single- / Dual-end processing, fully programmable

Cable width within 38mm, 2-24P

Cable cutting length 68-950mm

Longer cables can be customized

Transfer cables in a parallel direction, no spin

Inquire Now

RIBBON CABLE SPLIT TO CRIMP

The JCW-CST14 is a fully automatic double-ended wire processing machine available in two separate versions, dedicated for flat ribbon cables and single-core wires respectively.

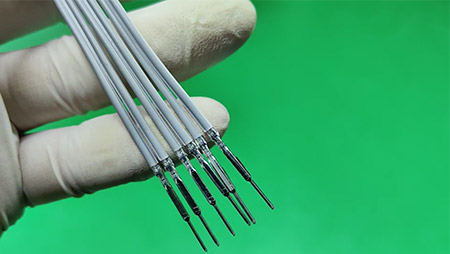

The flat ribbon cable version is equipped with a built-in wire separating function. It automatically completes cable feeding, length measurement, cutting, splitting of ribbon cable into individual cores, insulation stripping and dual-end terminal crimping in one continuous cycle. The splitting mechanism neatly divides the flat ribbon cable to ensure each conductor is separated cleanly before stripping and crimping, avoiding short-circuit risks and delivering reliable crimping quality for ribbon cable harness assemblies.

The single-core wire version is developed for processing individual single-core wires. It performs automatic wire feeding, length measuring, cutting, insulation stripping and double-end terminal crimping. Precision stripping control removes insulation cleanly without scratching the inner copper conductors. Its dual-head design processes both ends of the wire simultaneously to raise production output and reduce manual operation.

All parameters including wire length and terminal specifications can be conveniently adjusted via the touchscreen interface for stable mass production of electronic wiring harnesses. Please contact our sales team to confirm the correct machine version for your application.

Model	JCW-CST14 Fully Automatic Ribbon Cable Crimping Machine
Ribbon cable width	Max 38 mm [ AWG28=24P, AWG26=20P ]
Cable type	PH/XH/EH/SCN/SM/VH/Dupont
Cutting length ( L )	68 - 950 mm [ Other lengths on request ]
Cutting length tolerance	0.002 x L
Stripping length	Front side: Max 4.5 mm
Stripping length	Rear side: Max 10 mm
Crimping force	2 tons
Production rate	20000 crimping/h by 12P cable 100mm cutting length
Data library	100 programs
Detector	Terminal run-out, Cable run-out, Cable knot, Terminal crimping, Air pressure, Paper wind
Optional peripherals	CFM, Wire unwinder
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Rated power	3000 W
Air supply	0.4 - 0.8 MPa [ Clean and dry air ]
Weight	600 KG
Dimensions	L 2300 x W 1200 x H 1550 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
