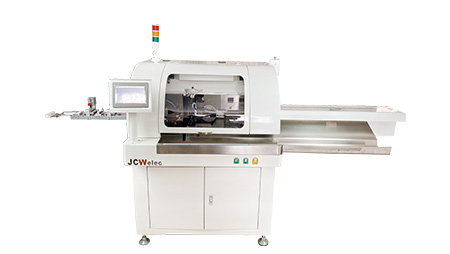

JCW-CST09 Automatic Servo Motorized Wire Strip and Solder Machine

High-level model for precise wire stripping and soldering


Feature of the machine

The JCW-CST09 is a response to the growing needs of the rapidly evolving digital consumer electronics industry. This highly efficient automatic 8 wires crimping and soldering machine serves various applications: wire cutting and stripping, wire twisting, fluxing and tinning. The JCW-CST09's processing capacity is reaching 6600 to 12000 pieces per hour. The standard model offers 850mm cutting length, 1200mm-1500mm-1800mm are all optional. The compact machine design provides economic flexibility and high productivity.


High quality, high output, and simple operation

The JCW-CST09 integrates high-quality components: 6 sets of MITSUBISHI servo motors, THK/TBI guide, FESTO valve, highly rigid transmission structure, high-speed control system. Super user-friendly interface and 7" touch screen interface offer accurate input and clear vision. A motorized digital wire twisting monitor brings perfect wire tinning. Vivid detectors ensure high-quality production: wire lack detection, wire knot detection, stripping detection, air pressure detection, etc.


Various peripherals and options

- Ultrafine wire AWG 32
- Ultra short processing 8 mm

- 1200mm / 1500mm / 1800mm cutting length

- Wire prefeeder for keeping proper wire tension

- Conveyor belt for stacking finished wire

- Customize HMI, language & logo

ModelJCW-CST09 Automatic 8 Wires Stripping and Tinning Machine
Function

Single/dual end stripping, Full stripping, Partial stripping, Middle stripping,  Double sides fluxing & tinning, Cut depth, Pull-off length.

Wire rangeAWG 32 - AWG 18
Raw material
PVC, Teflon, Low halogen, etc.
Cutting length ( L )8 - 850 mm [ 1200-1500-1800mm on request ]
Cutting length tolerance0.002 x L
Stripping lengthLeading strip: 0.1 - 12 mm
Trailing strip: 0.1 - 15 mm
Twisting length2 - 10 mm
Tinning length1 - 12 mm
Production rate12000 pcs/h by 100mm cutting length
Data library100 programs
DetectorWire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Optional peripheralsCFM, Wire unwinder, Conveyor belt
Display7" touch screen, English / Chinese  [ other languages on request ]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Rated power3 KW
Air supply0.4 - 0.7 MPa [ Clean and dry air ]
Weight550 KG
DimensionsL 1500 x W 850 x H 1600 mm
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
