Heavy-duty Multicore Sheathed Cable Cutting Stripping Machine

JCW-CS19M

Updated model of JCW-CS19

Servo motorized cutter head

Cutting and stripping max 120mm² single core cable

Process both outer sheath and inner wire of multicore cable

Long stripping, front end max 200mm, read end max 150mm

Inquire Now

Heavy-duty Sheathed Cable Cut & Strip

Heavy-duty Multicore Sheathed Cable Cutting Stripping Machine

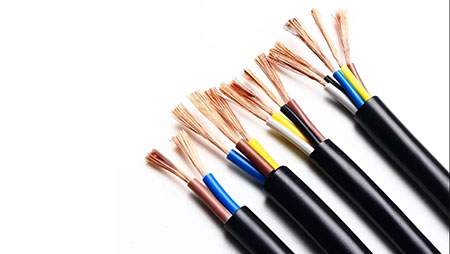

JCW-CS19M is a heavy-duty automatic cutting and stripping machine designed for large round multi-core sheathed cables. With reinforced mechanical frame and strong power output, it handles thick heavy-gauge cables such as battery cables and welding cables reliably.

Different from many dedicated sheath processing machines, this model supports both multi-core sheathed cables and single wires, bringing greater flexibility for mixed production orders.

It can be matched and combined with winding machine to build a continuous processing workflow, realizing stripping and winding in linked steps and reducing intermediate manual transfer.

It is equipped with a 7-inch color touch screen. Every stored recipe can be custom named, which helps operators quickly recall settings when switching between different cable types. Standard UI includes Chinese and English, and extra language options are available for overseas factories.

Reserved interfaces support thermal transfer, inkjet and laser marking equipment. JCW-CS19M is a flexible heavy-duty solution for new energy, welding and heavy industrial harness workshops.

Model	JCW-CS19M Heavy-duty Multicore Sheathed Cable Cutting Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material	PVC, Rubber, Teflon, Silicone, Low halogen, Fiberglass, etc
Single core cable	10 - 120 mm²
Multicore cable	Max 5 cores, O.D ＜ 25 mm
Cutting length ( L )	150 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	Front: Outer 1 - 200 mm, Inner 1-30mm
Stripping length	Rear: Outer 1 - 150 mm, Inner 1-30mm
Feeding system	32 rollers, belt-driven
Production rate	800 pcs/h
Data library	100 programs
OEM	Yes
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable pre-feeder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1360 x W 650 x H 1450 mm
Weight	155 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
