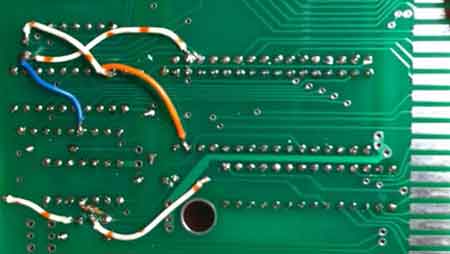

PCB-Jumper-Wire-Cutting-Stripping-Machine

PCB-Jumper-Wire-Cutting-Stripping-Machine

Automatic Ultra-short 4 Wire Cutting and Stripping Machine JCW-CS16

Professional ultra-short LED wire processor


High-speed and Precise

The JCW-CS16 is a proven fast and precise bench-top machine for cutting & stripping applications, specially designed for the LED light industry. This cut & strip machine is equipped with high torque step motors, subdivision drivers, wear-resistant steel rollers ( urethane rollers are optional ), a robust cutter head, and a transparent safety cover. This excellent wire cut & strip machine processes 4 single wires up to 0.75 mm², with a high level of precision ± 0.002 x wire length, meanwhile producing 15000 pieces per hour.


Simple operation, high-performance

Whether novice or professional, you can quickly use the JCW-CS16 wire cutting & stripping machine proficiently. The control with touch screen has an intuitive user interface for simple and safe operation. Thanks to the microprocessor control, the parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.


This cutting and stripping machine features an automatic one-touch calibration function for cutting length and middle strip capability.

ModelJCW-CS16 Ultra-short 4 Wire Cutting and Stripping Machine
Function

LED light wire, Wire measuring, Cut into length, Length correction, Cut depth, Strip length

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections0.3 - 0.75 mm² [ AWG 22 - 18 ]
CapacityCut 5 mm with strip 2 mm at dual-ends
Production rate

15000 pcs/h

Feeding unit4 rollers [ steel / Urethane  ]
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 460 x W 470 x H 350 mm
Wire straightener: 250mm
Weight35 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
