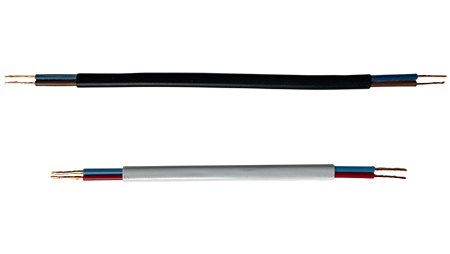

2-Core Sheath Cable Cutting to Stripping

2-Core Sheath Cable Cutting to Stripping

JCW-CS14 Automatic Flat Multi-core Cable Cut Strip & Twist Machine

Focus on multicore cable, strip both layers, twist conductor


Specialist in processing multicore cable

The JCW-CS14 is a fully programmable bench-top cut & strip machine for processing 2 cores flat multicore cable up to 7 mm in width, it perfectly cut and strip both of outer jacket and inner cores, and twist conductors at one time. All of the parameters such as wire cutting length, stripping length, twisting length, etc. can be accurately entered and stored for future recall at any time. The JCW-CS14 cut & strip machine adopts high torque stepper motors, robust twisting station.


Easy to use

Each of the JCW-CS14 cutting and stripping machine comes with an English display, the display language is customizable. User-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- Data library saves 100 programs, you can name each one by a wish.

- Automatic one-touch calibration function for cutting length.

- Quickly change guide tubes and cutter blades.


A variety of peripherals

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS14

- Cable stacker, 1 meter to 6 meters


ModelJCW-CS14 Automatic Multi-core Cable Cutting Stripping and Twisting Machine
Function

Flat multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner core stripping, Wire twisting, Twist force

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size2 - 7 mm in width
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Outer jacket stripping lengthLeading ( right ) side: 80 mm [ partial stripping ]
Trailing ( left ) side: 50 mm [ partial stripping ]
Inner core stripping length30 mm at dual-ends
Production rate1000 pcs/h by 100mm wire length
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable unwinder
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 460 x W 780 x H 350 mm
Wire straightener: 250mm
Weight47 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
