Flat Cable Cut Strip Twist Machine

JCW-CS14

Optimized model, flat multicore cable stripping and twisting

High performance on processing multicore cable

High-speed up to 1000 pcs/h with stripping double layers

Flat multi-conductor cable up to 7mm in width

Automated length calibration

Fully programmable model

Inquire Now

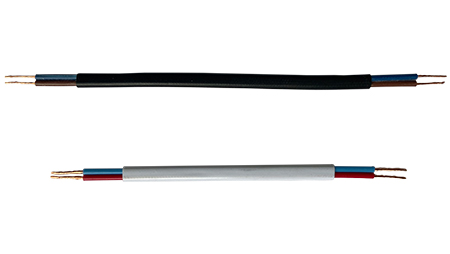

2-Core Sheath Cable Cut Strip Twist

JCW-CS14 Automatic Flat Multi-core Cable Cut Strip & Twist Machine

Focus on multicore cable, strip both layers, twist conductor

Specialist in processing multicore cable

The JCW-CS14 is a fully programmable bench-top cut & strip machine for processing 2 cores flat multicore cable up to 7 mm in width. It perfectly cuts and strips both of outer jacket and the inner cores, and twists conductors at one time. All of the parameters, such as wire cutting length, stripping length, twisting length, etc. can be accurately entered and stored for future recall at any time. The JCW-CS14 cut & strip machine adopts high torque stepper motors and, robust twisting station.

Easy to use

Each of the JCW-CS14 cutting and stripping machines comes with an English display; the display language is customizable. User-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with a touch screen has an intuitive user interface for simple and safe operation.

- The data library saves 100 programs, you can name each one by a wish.

- Automatic one-touch calibration function for cutting length.

- Quickly change guide tubes and cutter blades.

A variety of peripherals

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS14

- Cable stacker, 1 meter to 6 meters

Model	JCW-CS14 2-core Cable Cutting Stripping and Twisting Machine
Function	Flat multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner core stripping, Wire twisting, Twist force
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size	2 - 7 mm in width
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Outer jacket stripping length	Leading ( right ) side: 80 mm [ partial stripping ]
Outer jacket stripping length	Trailing ( left ) side: 50 mm [ partial stripping ]
Inner core stripping length	30 mm at dual-ends
Production rate	1000 pcs/h by 100mm wire length
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable unwinder
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 460 x W 680 x H 350 mm
Dimensions	Wire straightener: 250mm
Weight	42 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
