Servo Motorized Cable Cutting Stripping Machine

Servo Motorized Cable Cutting Stripping Machine

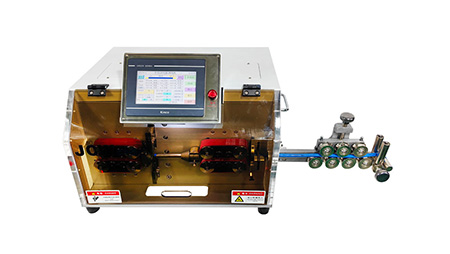

The model JCW-CS05B is a servo motorized cable cutting and stripping machine, it combines a servo motor on the cutter head to ensure powerful and precise cutting. A high-quality belt-feeding system guarantees precise feeding for long cutting.

The JCW-CS05B has both leftward and rightward feeding versions for selection. A freestanding model is also customizable.

The machine offers cable lack sensor and safety guard sensor to protect the machine and the operator.

JCW cable cut and strip machines are compatible with other accessories like cable stacker, conveyor belt, robot arm, cable prefeeding machine, ink-jet printing machine, thermal transfer printing machine, and coiling machine to compose automatic cable processing lines.


Model

JCW-CS05B Servo Model Cable Cutter Stripper

Function

Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction, Cable rewinding ( optional )

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable range30 mm², 15 mm diameter [ Customizable ]
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Stripping length

Front full strip1- 200mmpartial strip: 1-500m

Rear full strip1- 80mmpartial strip1-200mm

Production rate800-1200 pcs/h
Data library100 programs
Cutter headServo motorized
Multicore cableOnly outer jacket stripping
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Cable feeding
Belt feeding system, 8 rollers
Compatible peripheralsCable prefeeding machine, robot arm, conveyor belt, cable rewinding machine
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsL 650 x W 580 x H 460 mm
Weight70 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
