Automatic Cable Cutting Stripping & Winding System

JCW-CS05C | WS Series Wind System

Compact design, freestanding model

Cable rewinding machine is compatible

User-friendly English touchscreen

Transparent safety guard

Inquire Now

Automatic Cable Cutting Stripping Coiling Machine

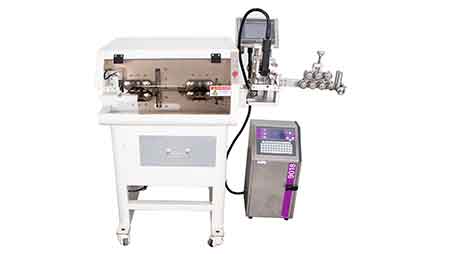

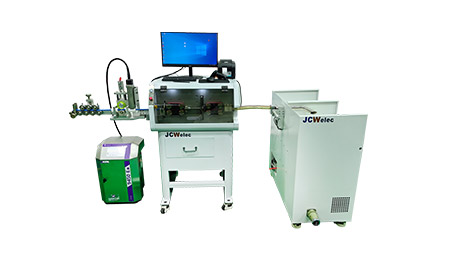

Automatic Cable Cutting Stripping Ink-jet Printing

Automatic Cable Cutting Stripping & Winding System

JCW-CS05C is a floor-standing servo cable cutting and stripping machine for cables up to 30mm².

This product page focuses on displaying the physical connection and cooperative working mode between the servo stripper and cable winder.

After cutting and stripping, cables are directly delivered to the winder for automatic coiling, forming a streamlined continuous production workflow. This combined setup saves manual handling, improves consistency for long-length power cable processing, widely adopted in cable harness workshops.

If a mobile table structure is unnecessary for your workshop and you want to avoid high transportation expenses, desktop variants within the CS series are an alternative option. Those desktop models can also be assembled together with the cable winder.

Please get in touch with our team, and we will recommend the most suitable wire processing solution according to your actual requirements.

Model	JCW-CS05C Automatic Cable Cutting Stripping & Winding System
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction, Cable rewinding ( optional )
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable range	30 mm², 15 mm diameter [ Customizable ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front full strip：1- 200mm, partial strip: 1-500m
Stripping length	Rear full strip：1- 80mm，partial strip：1-200mm
Production rate	800 pcs/h
Data library	100 programs
Winding diameter	3 models for selection WS360: 200 - 360mm WS680: 200 - 680mm WS1000: 200 - 960mm
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	Belt feeding system, 8 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt, cable rewinding machine
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 850 x W 600 x H 1300 mm
Weight	120 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
