Process 2 & 3 cores flat cable, strip both outer jacket and inner wires
Special-made Multi-V blad
Color touchscreen, customizable display
Fully covered safety guard is optional
The freestanding model is optional
JCW-CS03M
Process 2 & 3 cores flat cable, strip both outer jacket and inner wires
Special-made Multi-V blad
Color touchscreen, customizable display
Fully covered safety guard is optional
The freestanding model is optional

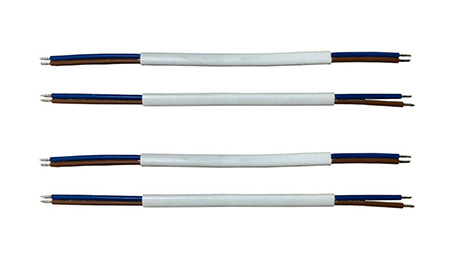

Flat Sheathed Cable Cutting 2-layers Stripping
JCW-CS03M is an automatic cable cutting & stripping machine specially designed for flat sheathed cables. The cable straightener, guide and blades are specially customized according to the specifications of flat sheathed cables, ensuring smooth wire feeding and precise stripping of the outer sheath and core wires.
The standard model of JCW-CS03M is a desktop model. A floor-standing model is available. The floor-standing model is easy to move, which increases the flexibility of the machine and allows it to be moved to different locations in the workshop quickly and effortlessly.
Model | JCW-CS03M Flat Cable Cutting and Stripping Machine |
Function | 2 & 3 cores flat cable, Cable measuring, Cut into length, Outer jacket and inner wire stripping, Wire lack sensor, Length correction, Data library |
Cutting length ( L ) | 0.1 - 999999 mm |
Cutting length accuracy | 0.002 x L |
Outer stripping length | Front ( right ) side: 100 mm [ Full stripping ] |
Rear ( left ) side: 30 mm [ Full stripping ] | |
Inner stripping length | 30 mm |
Production rate | 1800 pcs/h by 100mm wire length |
Data library | 100 programs |
Display | 4.3" color touchscreen, English / Chinese [other languages on request] |
Compatible peripherals | Wire prefeeder, robot arm, conveyor belt, printer |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | Benchtop model: L 460 x W 470 x H 350 mm |
Freestanding model: L 700 x W 680 x H 1050 mm | |
Weight | 35 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
