JCW-S10E Pneumatic-electric Wire Stripping Machine

Specially designed for thin wire


Different from JCW-S10, the JCW-S10E pneumatic-electric wire stripper is activated by a foot pedal, besides hard cables,  it's also suitable for thin wires which can not push the trigger sensor.


The JCW-S10 series wire and cable stripping machines are suitable to process single wire and multicore cable. These wire strippers are ideal for processing multicore cable with inner wires at different diameters.

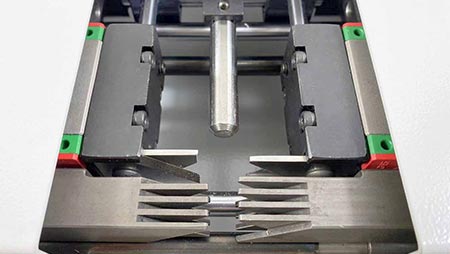

The smart design allows for processing wires with a single set of V-blade, adjust blade is unnecessary to strip wires up to 10mm².


The machine can perform both full and partial stripping by simple adjustment.


Together with JCW-320 series of crimping machines, you can build-up your product line at a very low budget.


ModelJCW-S10E  Pneumatic-electric Wire Stripping Machine
FunctionFull stripping, partial stripping, no blade change needs
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections0.5 - 10 mm²
Stripping length2 -  50 mm
Product rate1400 - 1800 pcs/h
Air supply0.4 - 0.7 MPa ( clean and dry air )
Power supplyAC 220 V, 50 / 60 Hz
DimensionsL 360 x W 290 x H 180 mm
Weight15 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
