68kN Pneumatic Tubular Cable Lug Crimping Machine

JCW-320L

RN & SC Battery Cable Lug Crimping Machine

Lug range up to 120 mm²

68KN crimping force

25 sets of the crimp die sets for option

Hexagon / Indent / Open barrel "B" type crimping

Fast crimp die sets changeover

Inquire Now

Heavy-duty Lug Crimping Machine

JCW-320L 68kN Pneumatic Tubular Cable Lug Crimping Machine

The JCW-320L pneumatic crimping machine is the ultra-heavy-duty variant within the JCW-320 series, engineered exclusively for copper cable lug termination.

It delivers 68kN of consistent crimp force to handle large gauge power lugs. This machine supports three standard crimp profiles: B-type, hexagonal and indent crimp.

Separate dedicated dies are used for each crimp style, so users can swap tooling quickly to meet different drawing specifications. Air-driven design maintains repeatable crimp quality under sustained heavy loads.

The reinforced thick frame structure minimizes deflection during high-force cycles.

The JCW-320L is well suited for power cabinet, distribution and new energy harness workshops running mixed lug specifications.

Model	JCW-320L Heavy-duty Pneumatic Lug Crimping Machine
Function	Non-insulated terminal, copper tube lug, O-ring tubular terminal, Open barrel terminal, Fast change die set.
Capacity	6 - 120 mm²
Crimping width	8 mm
Crimping force	6.8 Tons

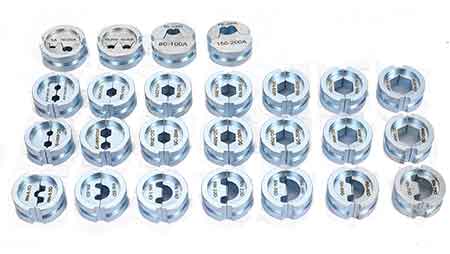

Crimp dies sets	27 sets for selection
Air regulator	Yes
OEM	Yes
Activation	Foot pedal
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	L 390 x W 180 x H 230 mm
Weight	14 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
