Automatic Coaxial Cable Cutting Stripping Machine

JCW-CS600C

High-precision cutting accuracy 0.1mm

Rotary cutter head, wide cable range

Cable diameter ranging from 1.0 to 6.0mm

Customizable to 8.5mm diameter coax cable

Automatic product line, professional cable prefeeder

Inquire Now

JCW-CS600C Automatic Coaxial Cable Cutting Stripping Machine

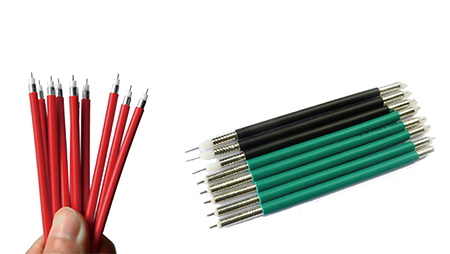

The standard cable range of CS600C is 1.0 to 6.0mm diameter coaxial cable, we also supply customized model for 1.5 to 8.5 mm cable.

The CS600C is a fully programmable multistep stripping machine for coaxial, triaxial, multiconductor cable and single-conductor wire.

High-precision 4 blade cutter head can cut very thin insulation.

Model	JCW-CS600C Automatic Coaxial Cable Cutting Stripping Machine
Function	Single wire, multicore cable, coax cable, cut length, cut depth, data library, workbench
Cable diameter	1.0 - 6.0 mm [ 1.5-8.5 Customizable ]
Cutting length ( L )	50 - 9999 mm
Cutting accuracy	L ± 1‰
Cut depth increment	0.01 mm [ PVC insulation ]
Stripping length	Lead side: max 100mm
Stripping length	Rear side: max 45mm
Stripping length increment	0.01 mm
Stripping steps	6
Product rate	350 - 900 pcs/h [ Depending on cable type ]
Data library	40 programs
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Rated power	800 W
Display	English / Chinese [ customizable ]
Dimensions	L 790 x W 730 x H 400 mm
Weight	120 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
