Reinfoced 4 Wires Automatic Cut & Strip Machine

JCW-CS06F

Process 4 wires at the same time

Max 1.5mm² for each single wire

Adopt high-torque stepper motors

Precision mechanical construction

Excellent production efficiency

Accuracy cannot reach single-wire version

Automatic cutting and stripping

Fit for large-batch harness production

Inquire Now

4-Wires Cutting & Stripping Machine

Reinfoced 4 Wires Automatic Cut & Strip Machine

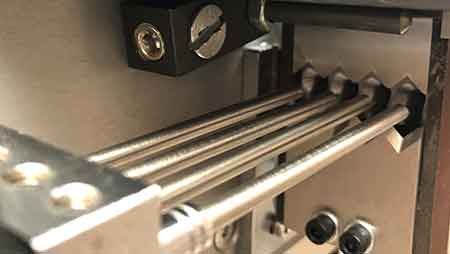

JCW-CS06F automatic multi-wire cutting and stripping machine can process four wires in one working cycle, with a maximum cross-section of 1.5mm² for each wire, greatly lifting production capacity.

We equip this machine with high-torque stepper motors and precision mechanical assemblies to guarantee stable operation.

Even with these premium configurations, the inherent characteristics of multi-wire processing mean its stripping accuracy still cannot compare with our single-wire cut-and-strip machines.

This model is perfect for high-volume production tasks where output speed is the primary target, and the tolerance requirement allows a reasonable deviation range.

Model	JCW-CS06F 4 Wires Automatic Cut & Strip Machine
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	Max 2.5mm² x 4 wires
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 150 mm [ partial stripping ]
Stripping length	Rear ( left ) side: 70 mm [ partial stripping ]
Middle strip	13 sections
Production rate	10000 pcs/h by 100mm wire length
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	6 rollers
Compatible peripherals	Cable prefeeding unit, robot arm, cable stacker
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 560 x W 470 x H 370 mm
Dimensions	Wire straightener: 250mm
Weight	45 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
