Belt Feeding Cable Partial Stripping Machine

JCW-CS05AW is the belt-feed alternative model of the CS05W high-power window stripping machine.

All stripping functions, power, processing range and stripping logic remain exactly the same as CS05W.

It completes fixed-length cutting, end stripping and precision window middle stripping.

It handles sheath cables with outer diameter up to 12 mm and single-core wire up to 35 mm².


The only structural difference: this version adopts belt feeding instead of metal roller feeding.

Belt feeding delivers softer clamping and transport, which is preferable for easily scratched, delicate or soft-jacket cables.

Customers now have two feeding options — metal roller feed (CS05W) or belt feed (CS05AW), to match their own cable surface protection requirements.

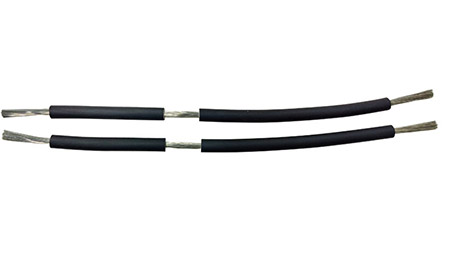

The core advantage of window middle stripping is retained: it removes a targeted local section of insulation while keeping the cable continuous.

It is ideal for branch taps and intermediate connections, reducing extra splice joints.

As with CS05W, whether the stripped jacket can fall off fully depends on cable construction, insulation adhesion and conductor type; solid single-core wire gives the most stable stripping result.
