Wire Cutting Stripping & Middle Stripping Machine

JCW-CS03W

Base function: automatic wire cutting and end stripping

Equipped with external independent pneumatic middle stripping device

Flexible mid stripping: no restriction on stripping position and stripping length

Different from traditional built-in push-wire middle stripping mechanism

Suitable for fine single-core wires and sheath cables

Sheath cable: only outer sheath can be stripped

Great adaptability for non-standard middle stripping jobs

Inquire Now

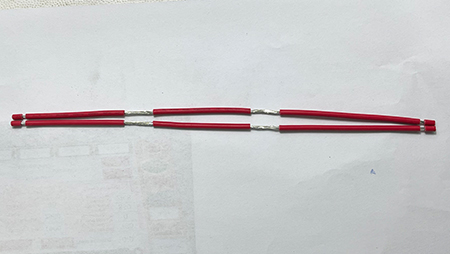

Hook Up Wire Middle Stripping

Wire Cutting Stripping & Middle Stripping Machine

JCW-CS03W is an automatic wire cutting and stripping machine integrated with an external pneumatic middle stripping attachment.

Unlike conventional machines that use built-in push-wire middle stripping with fixed limits, this external pneumatic mid-strip unit brings great flexibility.

The middle stripping process is no longer restricted by fixed stripping positions or preset stripping lengths, to satisfy varied custom harness requirements.

This model targets fine gauge wires, supporting single-core wires and sheath cables. For sheath cables, only the outer jacket can be stripped while inner core insulation stays untouched.

It retains reliable cutting and end stripping functions of a standard cut-strip machine, while adding an independent, flexible mid-stripping capability, a perfect solution for complex fine wire harness production.

Model	JCW-CS03W Wire Middle Stripping Machine
Function	Single wire,Wire measuring, Cut into length, End stripping, Window stripping
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.03 - 6 mm² [ 10mm² on request ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 50 mm [ Full stripping ]
Stripping length	Rear ( left ) side: 30 mm [ Full stripping ]
Middle strip	Programmable
Production rate	4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ]
Data library	100 programs
Zip-cord	Optional
Roller lift function	Optional
Fully covered safety guard	Optional
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable splitter, wire pre-feeder, robot arm, conveyor belt, hot stamping machine, inkjet printer
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 460 x W 470 x H 350 mm
Weight	38 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
