90kN Pneumatic Lug Crimping Machine

JCW-320M

0.5 - 0.8 MPa compressed air

9 tons crimping force

3 types of standard crimp die set for option

Die sets can be customized: coaxial cable, special connector, etc

Inquire Now

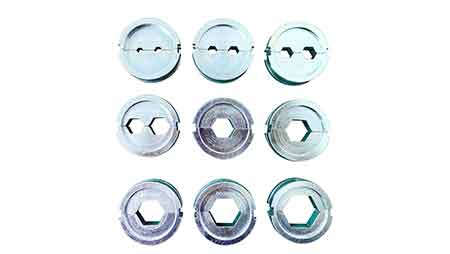

Hexagonal Crimping

Coax Connector Crimping

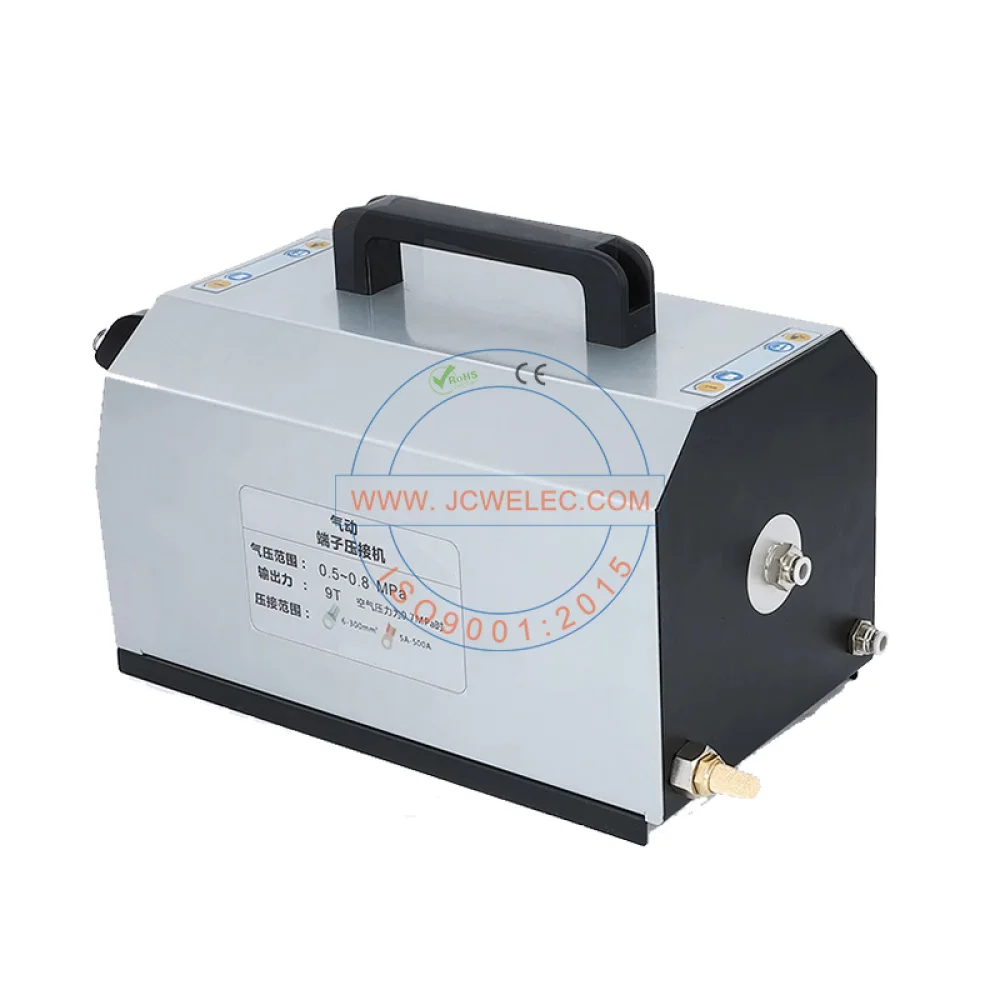

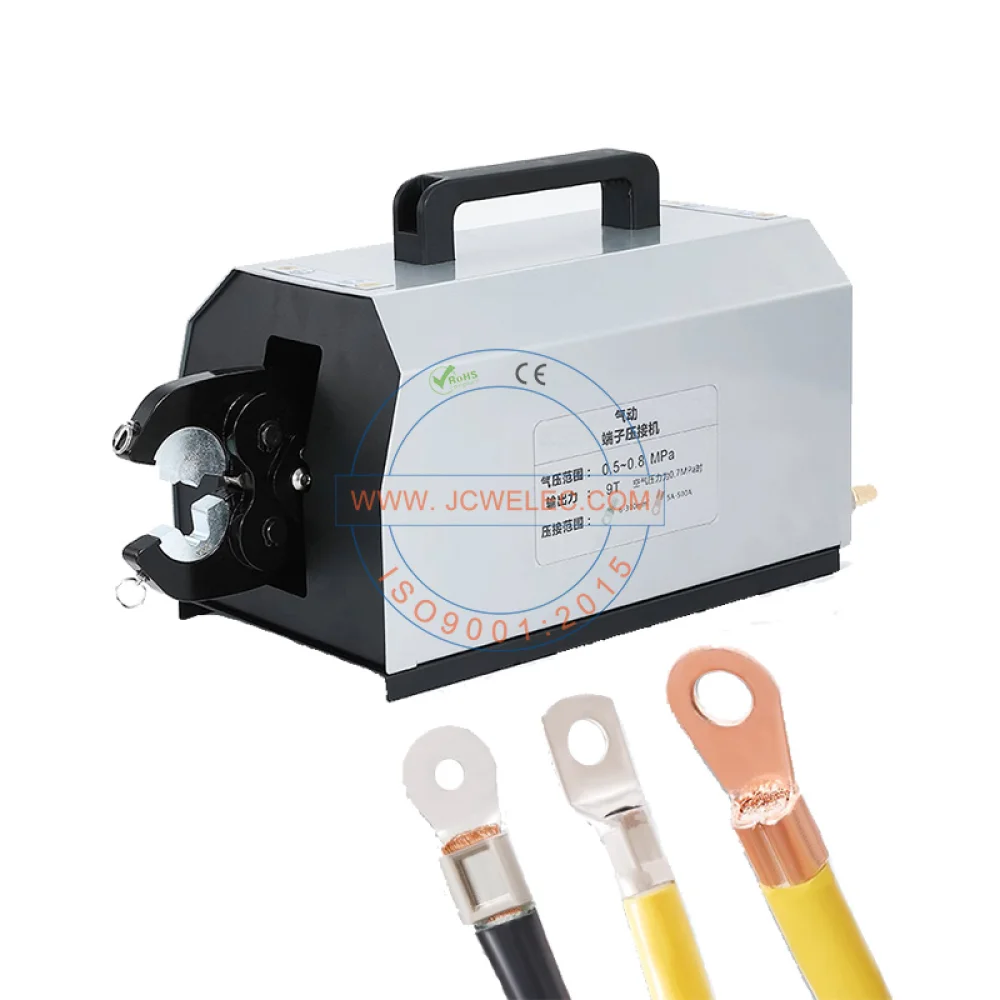

JCW-320M 90kN Pneumatic Lug Crimping Machine

The JCW-320M pneumatic crimping machine is the top-tier maximum heavy-duty model of the JCW-320 series, capable of outputting 90kN, equivalent to 9 tons of crimp force.

It is purpose-built for oversized, large cross-section copper cable lugs. Powered by compressed air, this machine provides massive, stable thrust for tough power termination jobs.

Its ultra-reinforced welded frame eliminates deflection under peak load, securing consistent crimp geometry for high-current cable lugs.

JCW-320M supports dedicated interchangeable dies to satisfy different crimp profile requirements. Designed for heavy power harness, high-voltage cabinet and large energy storage projects, this machine handles low-volume heavy lug batches reliably.

Model	JCW-320M Lug Crimping Machine
Function	Non-insulated terminal, copper tube lug, O-ring tubular terminal, Open barrel terminal, Fast change die set.
Capacity	SC open lug: 2.5 - 95 mm² OT & DGTA indent crimp: 4 - 240 mm² SC tubular lug hex crimp: 4 - 300 mm²
Crimping width	8 mm
Crimping force	9 Tons
Standard crimp die set	25 sets for selection
Special die set	Customizable
Air regulator	Yes
OEM	Yes

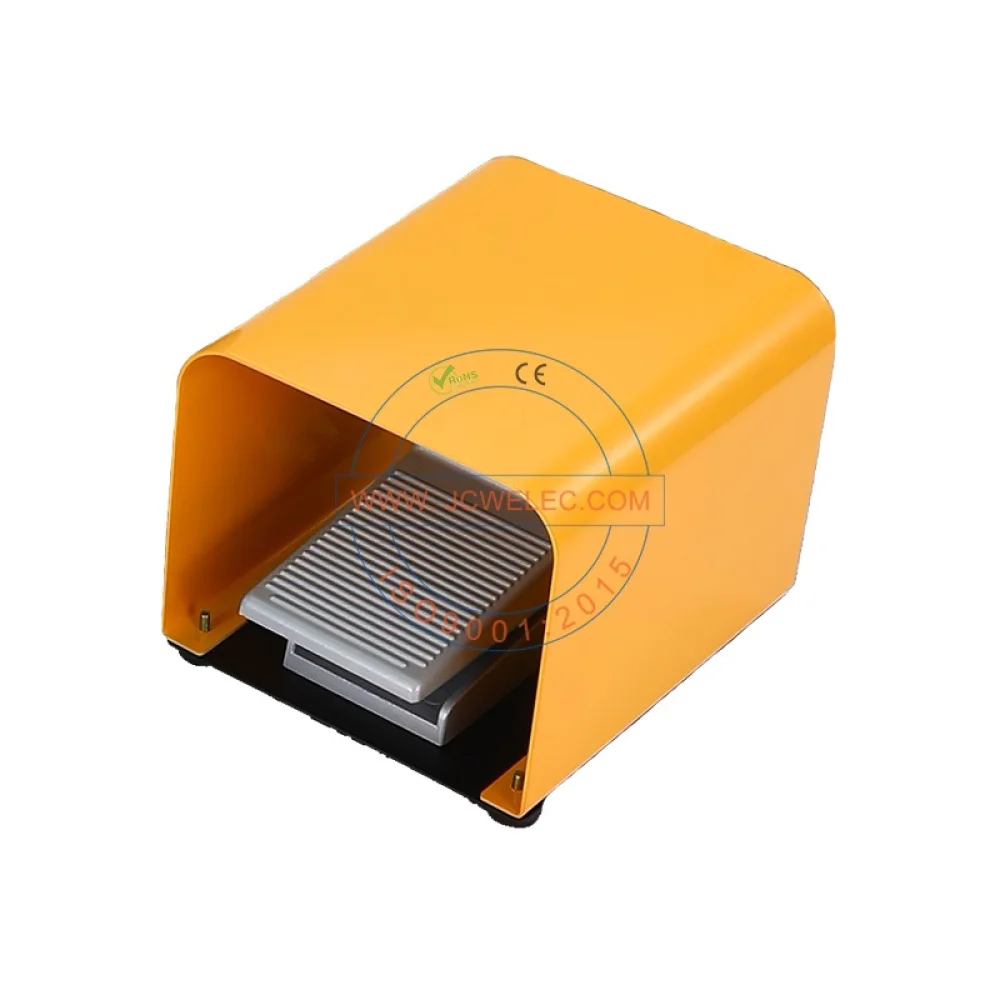

Activation	Foot pedal
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	L 490 x W 205 x H 260 mm
Weight	15 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
