12.7kN Portable Electric Terminal Crimping Machine ( 16mm² )

JCW-320C

Electric terminal crimping machine

12.7KN crimping force

Fast crimp die sets changeover

25 mm² insulated end sleeve

10 mm² non-insulated terminal

Cycle time 1.5 seconds

Inquire Now

Electric Terminal Crimper

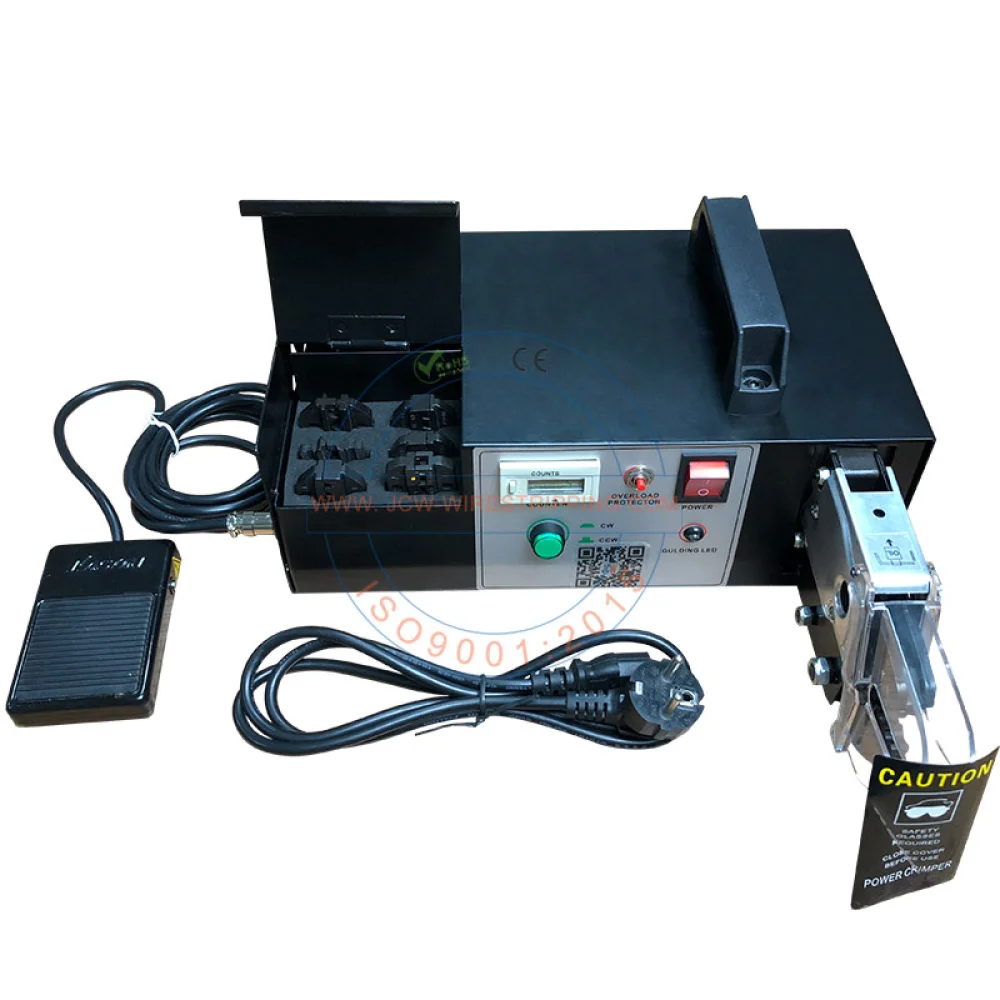

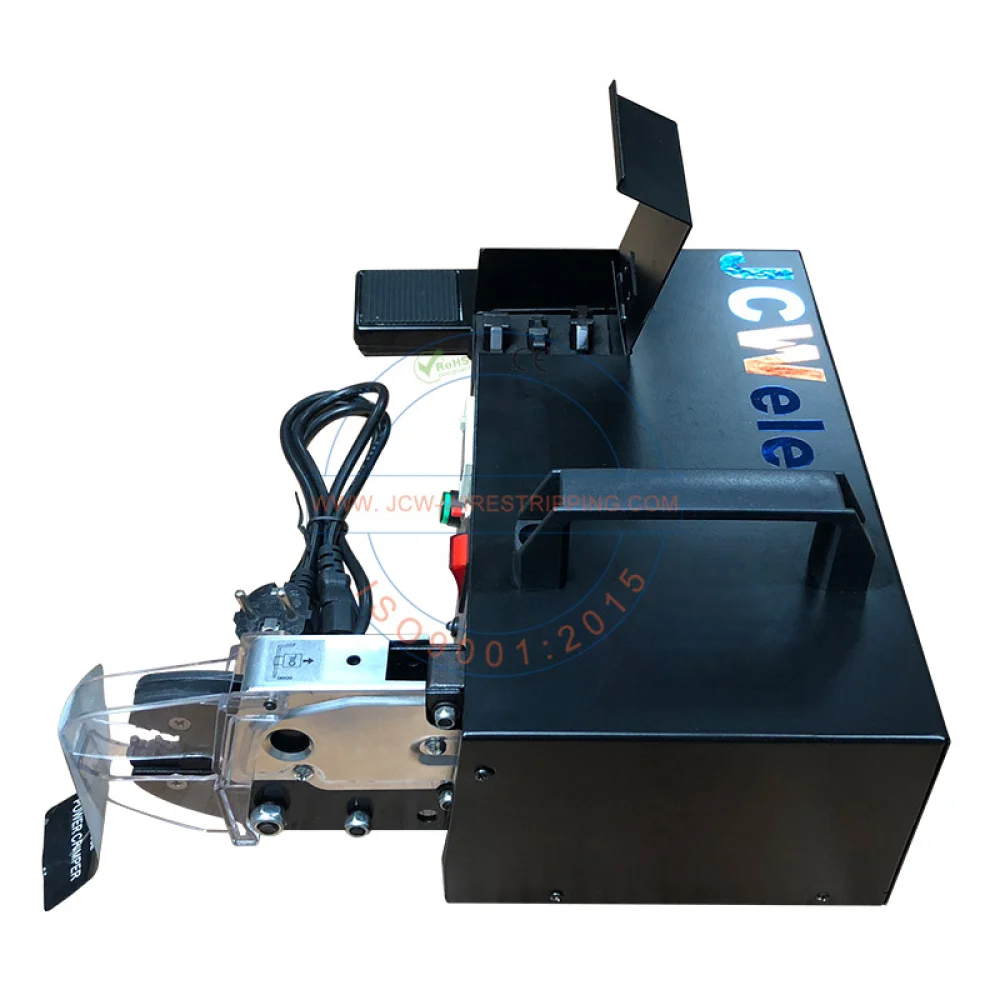

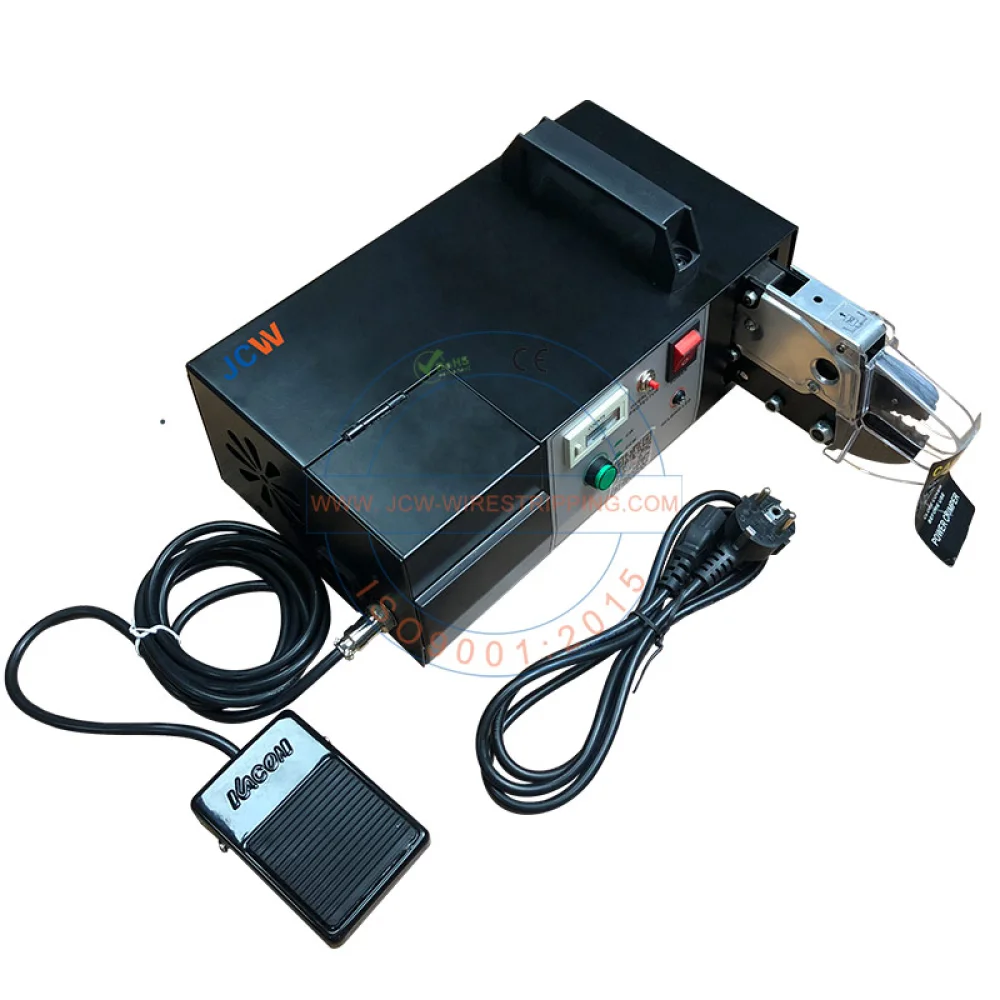

JCW-320C Electric Bench Top Terminal Crimping Machine

12.7 KN crimping force, fast change crimp die sets, dozens of die sets for selection

The JCW-320C powered electric crimping tool is engineered for streamlined wire harness assembly on bench workstations. It features a rapid jaw swap mechanism that lets operators switch tooling in moments without specialized auxiliary tools.

This electric crimper accommodates a wide spectrum of terminal types, eliminating the need to stock numerous manual hand pliers. Consistent powered actuation removes fatigue from repeated crimp cycles and delivers repeatable termination quality for mid-volume wiring tasks.

Compact form factor makes it fit neatly on workbenches for daily harness production. It is widely deployed in control cabinet wiring, electronic assembly and pre-production prototype building.

Model	JCW-320C Electric Crimping Machine
Function	Insulated terminal, non-insulated terminal, flag terminal, fast change dies set, crimp counter.
Cable range	Insulated end sleeve: 25 mm²
Cable range	Non-insulated terminal: 10 mm²
Crimping force	12.7 KN

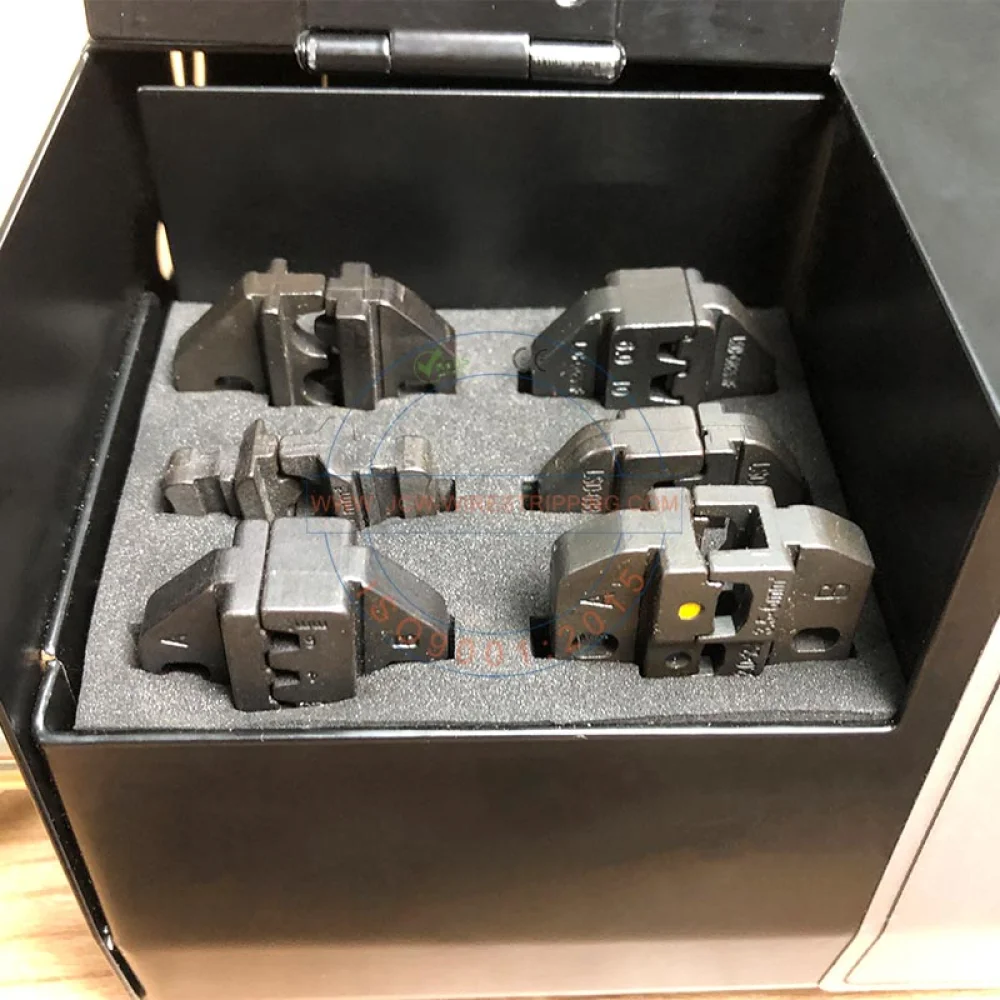

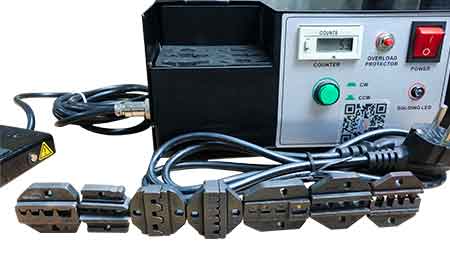

Crimp dies sets	7 sets
Rated power	90 W
OEM	Yes
Activation	Foot pedal
Power supply	AC 110 / 220 V ± 10%, 50 / 60 Hz
Dimensions	L 325 x W 265 x H 150 mm
Weight	17 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
