High-precision Terminal Crimp Press [ 30mm Stroke ]

JCW-2TN

Robust semi-auto crimp press

Compatible with Europe mini-style applicator

Safety protection foot pedal switch

Transparent safety guard

EM-STOP button & paper winder are optional

Inquire Now

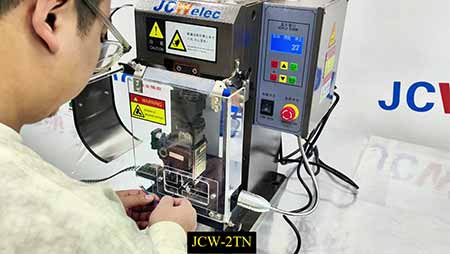

JCW-2TN High-precision Terminal Crimp Press [ 30mm Stroke ]

JCW high precision terminal crimp press is refined for superior accuracy and long service life. Equipped with 30mm stroke, this series provides 2T,3T,4T tonnage options to meet diverse crimping demands.

This durable terminal crimper is perfectly built for crimping MOLEX, JST, TE and other high-precision terminals. Stable mechanical structure ensures consistent crimp quality, ideal for wire harness manufacturers processing delicate connectors.

Simple operation and long-term reliability make this 30mm stroke terminal crimp press an excellent benchtop solution for precision electronic cable assembly.

Model	JCW-2TN High-precision Terminal Crimp Press
Function	OTP crimping applicators, side-feed / rear-feed / closed barrel terminals, switch pedal
Conductor cross-section	2 mm² [ customizable ]
Crimping force	20 KN [ 30 / 40 KN on request ]
Stroke	30 MM
Rated power	2TN: 750 W
	3TN: 1100 W
	4TN: 1500 W
OEM	Yes
Activation	Foot pedal
Compatible accessory	CFM, paper coiler
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	2TN / 3TN: L 300 x W 330 x H 740 mm
Dimensions	4TN: L 320 x W 350 x H 840 mm
Weight	2TN: 85 KG
	3TN: 90 KG
	4TN: 130 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
