JCW-8TC
Wire stripping and terminal crimping in one cycle
Servo motor control crimping machine, fully programmable
Adapt Europe mini-style terminal crimp applicator
8 tons crimping force, wire range up to 5AWG ( 16mm² )
Stripping length up to 15mm
Scrap collector ensures a clear working area

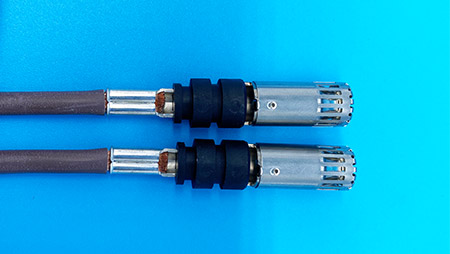

Custom Connector Crimping, Europe Type Crimp Applicator
JCW-8TC is a high-force servo strip and crimp workstation designed for extra-large power terminal applications.
Its 8-ton servo actuator delivers ample forming force for robust heavy-duty lugs and bulk cable terminals where standard crimp force is insufficient.
Automatic stripping and crimping run in one integrated cycle, built for thick conductors and high-current terminal assemblies. Servo closed-loop control supports fine tuning of crimp stroke, force and speed.
Every job setting can be saved as a recipe, bringing stable crimp results and traceable quality control for heavy harness batches.
This machine targets power distribution, heavy machinery, battery and vehicle harness workshops processing large lugs that demand heavy, uniform crimp compression.
Crimp force monitoring can be fitted optionally for quality control.
| Model | JCW-8TC Heavy-duty Europe Type Wire Stripping to Crimping Machine |
| Function | Single wire, Multiconductor cable, Wire stripping, Terminal crimping |
| Terminal type | Side-feed type ( horizontal ) |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Crimp force | 8 tons |
| Conductor cross-sections | AWG 36 - AWG 5 [ 16 mm² ] |
| Stripping length | 1 - 15 mm |
| Cutting accuracy | 0.05 - 0.1 mm |
| Position accuracy | 0.05 - 0.1 mm |
| Stroke | 30 mm |
| Stroke numbers | 4000 / h |
| Rated power output | 3000 W |
| Touch screen | 7", English |
| CFM | Compatible |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.5 - 0.7 MPa ( clean and dry air ) |
| Dimensions | L 1200 x W 800 x H 2100 mm |
| Weight | 150 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
