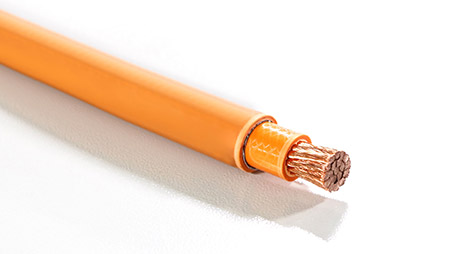

New energy electric car charging cable
Cable O.D. 3 - 30mm, stripping length 300 mm
Multi-step stripping, max 9 steps
Precise cutting and stripping, 0.01mm accuracy
JCW-S600D+
New energy electric car charging cable
Cable O.D. 3 - 30mm, stripping length 300 mm
Multi-step stripping, max 9 steps
Precise cutting and stripping, 0.01mm accuracy
HV Cable Stripping Machine
| Model | JCW-S600D+ EV Charging Cable Stripping Machine |
| Function | Coaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping. |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Cable diameter | 3 - 30 mm |
| Stripping length | 0.1 - 300 mm |
| Cutting depth increment | 0.01 mm |
| Blades | 4 pcs |
| Stripping steps | 9 |
| Centralizer | Yes |
| Data library | Yes |
| OEM | Yes |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Rated power | 1200 W |
| Power supply | AC 110 / 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 1500 x W 400 x H 1200 mm |
| Weight | 225 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
