Wire Stripping & Solid Contact Pin Crimping Machine

JCW-F3 SOLID

Ideal electro-pneumatic controlled strip & crimp machine

Wide range of solid terminals from different manufacturers

Wire stripping length up to 12mm, indent crimping profile

Fast exchanging a few parts for different cross-sections

Cycle time for each operation is 2.5 seconds

Robust construction, reliable operation, industrial quality

Inquire Now

Custom Solid Contact Crimping Machine

JCW-F3 SOLID Wire Stripping & Solid Contact Pin Crimping Machine

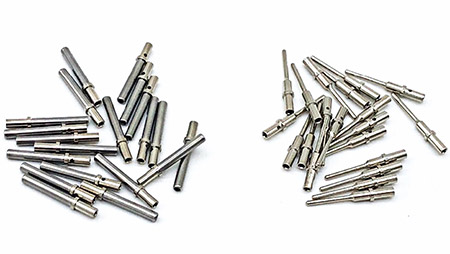

JCW-F3 SOLID is a purpose-built crimping machine engineered exclusively for Deutsch aviation solid pin and socket contacts.

This machine carries out insulation stripping followed by precision contact crimping.

It is built for industrial wiring harness workshops that produce heavy-duty, vibration-resistant Deutsch connector assemblies used in vehicle, machinery and off-highway applications.

We strongly recommend the dedicated-use principle: each unit is configured and calibrated to work with only one specific terminal variant, to maintain stable crimp geometry, consistent retention force and reliable electrical performance in mass harness production.

Not every style of Deutsch aviation contact is compatible with automated crimping.

Customers shall get in touch with our sales team beforehand to verify terminal suitability, wire range and tooling feasibility before ordering.

Model	JCW-F3 Deutsch Solid Contact Crimping Machine
Function	Single wire, Multicore cable, Wire end stripping, Conductor twisting, Indent crimping, Stripping length, Cutting depth, Data library
Stripping length	Max 15 mm
Prepare multicore cable	Outer sheath stripping length is min 40 mm
Crimping profile	Indent
Crimping length	6 - 12 mm
Cycle time	2.5 seconds, 1000 - 1300 pcs / hr
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Customize logo	Yes
Rated power	400 W
Air supply	0.6 - 0.8 MPa ( clean and dry air )
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 430 x W 505 x H 425 mm
Weight	68 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
