JCW-CST18F
Tube printing, wire stripping, tube insertion, single-/double-end terminal crimping in one process
Robotic arm for feeding and handling loose form terminals
Terminals at both ends of the wire can be combined in any way
The font size of the printed text is adjustable
The length of the number tube is adjustable
Positive and negative character indicators can be set
Supports double-line printing
Tubing position is freely adjustable

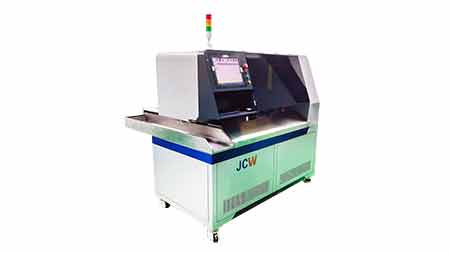

Marking Tube Machine
| Model | JCW-CST18F Marking Tube Printing, Inserting & Terminal Crimping Machine |
| Wire range | 0.5 - 4.0 mm² |
| Raw material | PVC, Teflon, Low halogen, etc. |
| Crimp force | 3 tons [ 30 KN ] |
| Cut length ( L ) | 300 - 9999 mm |
| Cut length tolerance | 0.1mm ± 0.002 x L |
| Strip length | 1 - 15 mm |
| Tubing length | 15 - 30 mm |
| Production rate | 400 - 450 pcs/h |
| Detector | Wire lack, Tube lack, Wire tension, Wire knot, Wire stripping, Terminal crimping, Air pressure |
| Optional peripherals | CFM, Wire prefeed machine |
| Display | 10" touch screen, English / Chinese [ other languages on request ] |
| Power supply | AC 110 / 220V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.5 MPa [ Clean and dry air ] |
| Dimensions | L 2050 x W 1530 x H 1660 mm |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
