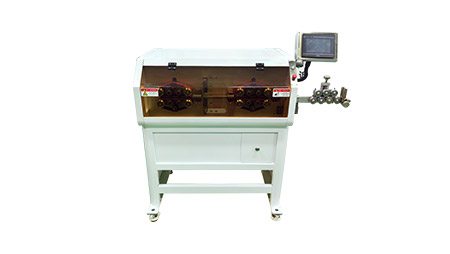

240mm² Servo Motorized HV Cable Cutting Stripping Machine

JCW-CS20A

Servo motorized cutter head, neat cutting

Cut and strip max 33 mm O.D. and 10 -240 mm² battery cables

High-quality belt feed system, zero damage to the cable

Powerful clamp force, precise feeding length

7" color touch screen, multi-language interface

Transparent and robust safety cover, safety sensor

Automatic cutting length calibration ensures precision

Cable run-out sensor gives machine stop signal

Inquire Now

Model	JCW-CS20A Servo Motorized HV Cable Cutting Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	10 - 240 mm²
Cable diameter	Max 30 mm
Cutting length ( L )	1 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 1 - 800 mm
Stripping length	Rear ( left ) side: 1 - 400 mm
Feeding system	32 rollers, belt-driven
Production rate	1800 pcs/h [ depends on cutting length ]
Data library	100 programs
OEM	Yes
Rated power	5200 W
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable splitter, wire pre feeder, robotic arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1150 x W 750 x H 1220 mm
Weight	240 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
