Customizable Wire Twisting Machine

JCW-325D

LCD display, English menu

Data library saves 99 twisting programs

High-speed, 300 - 7500 RPM

Max 20 sections twisting

Twisting direction and speed are adjustable for each section

Inquire Now

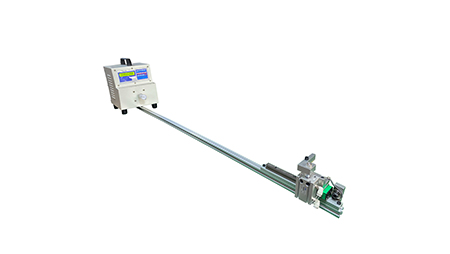

JCW-325D Customizable Electro-pneumatic Wire Twisting Machine

The JCW-325d is a highly customizable bench model wire twisting machine. The standard pulling length is 1 meter, we can customize it according to your cable length and twisting needs.

The pneumatic wire holder fixes the front end of the wire and pulls the wire straight along the track. At the same time, the rotary twist head rotates to complete the twisting of the individual cables.

Model	JCW-325D Electric Wire Twisting Machine
Function	Twist 2 wires into pairs, twist cycles, twist speed, data library, multi-section twisting
Twist length	Max 1000 mm
Twisting speed	300 - 7500 RPM
Twisting cycles	0.5 - 9999.9
Wire diameter	2 x 1.2 mm max
Data library	99 wire programs
Multi-section twisting	20 sections max
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1320 x W 240 x H 290 mm
Weight	18 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
