Insulated Lug Hexagonal Crimping Machine

JCW-320S HEX

6.0 mm² insulated loose piece ferrule

Hexagonal crimping profile,13KN crimping force

Made for insulated bootlace ferrules, hexagonal crimp profile

Quick size conversion: replace guide plate only, dies fixed

Reduced setup time and fewer spare dies to stock

Air-powered for stable, repeatable hex crimp geometry

Suitable for control cabinet and electrical harness production

Inquire Now

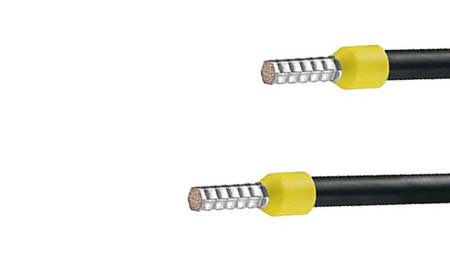

Hexagonal Crimping Profile

JCW-320S HEX Insulated Lug Hexagonal Crimping Machine

The JCW-320S HEX pneumatic crimping machine is the hexagonal crimp variant for insulated bootlace wire ferrules in the JCW‑320 series.

Its core structural advantage stays consistent: when switching between different ferrule gauges, only the guide plate needs replacement, while the hexagonal crimp dies are kept in place.

This drastically shortens size changeover cycles and lowers tooling inventory cost.

Pneumatic actuation delivers uniform, well‑formed hexagonal crimps, which is widely accepted for ferrule termination in many European electrical standards.

Compact bench design suits cabinet wiring and harness workshops with frequent part changeovers.

Model	JCW-320S HEX Pneumatic Insulated Terminal Hexagonal Crimping Machine
Function	Loose insulated end sleeve, hexagonal profile crimping
Capacity	0.2-6.0 mm²
Crimping force	13 KN
Locator	3 pcs
Air regulator	Yes
OEM	Yes
Activation	Foot pedal
Air supply	0.3 - 0.8 MPa ( clean and dry air )
Dimensions	L 151 x W 100 x H 150 mm
Weight	4 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
