JCW-S04 Servo Motorized Power Cord Cable Cutting Stripping Machine

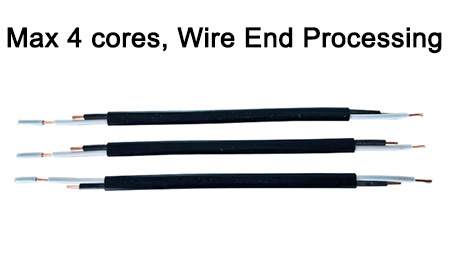

The JCW-S04 cable stripping machine combines a high torque servo motor, due to unique cutter blades and cable positioner, the JCW-S04 is capable to strip max 4 wires simultaneously and cut the wires into the same or different lengths. Precise cutting length and stripping length offer you a huge advantage over labor work.


ModelJCW-S04 Servo Motorized Power Cord Cable Cutting Stripping Machine
Function

Inner wire of multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Different stripping length

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Capacity0.5 - 3.0 mm²
Cutting length ( L )20 - 290 mm
Stripping length5 - 15 mm
Data library100 programs
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.5 - 0.8 MPa ( clean and dry air )
DimensionsL 900 x W 500 x H 1360 mm
Weight50 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
