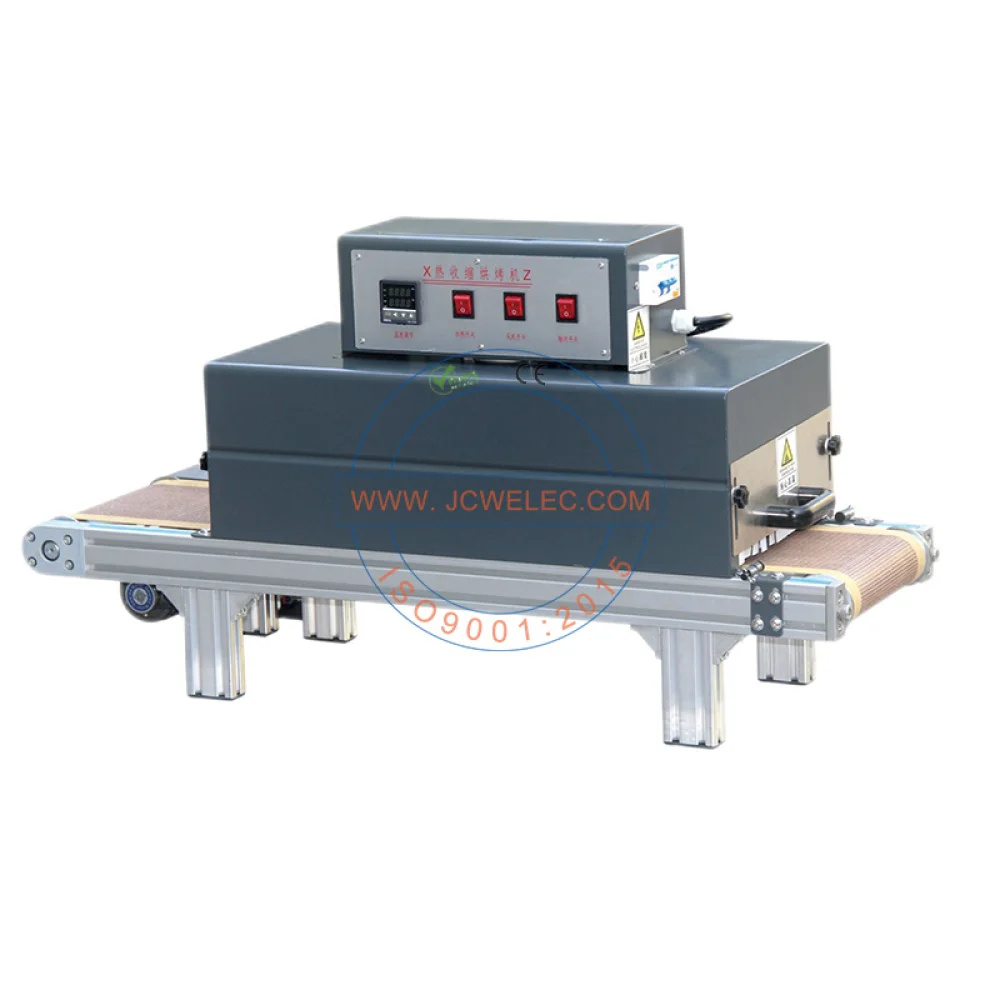

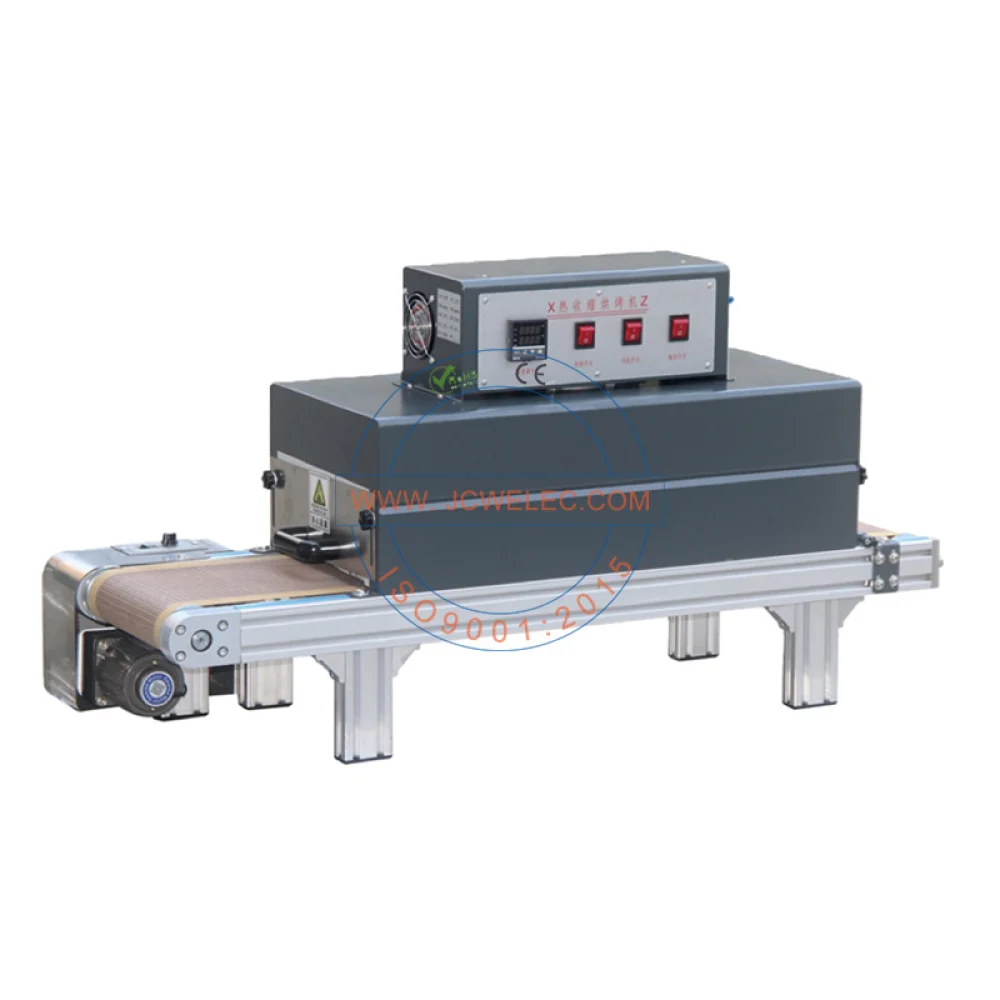

Benchtop Heat Shrinking Tunnel

JCW-HSB64

Latest upgraded version available

Upgraded tabletop shrinking machine

Cooling fans installed at the outlet

Infrared heating on both the top and bottom sides

Built-in air heater for consistent oven stability

Teflon braided conveyor belt, adjustable conveying speed

Inquire Now

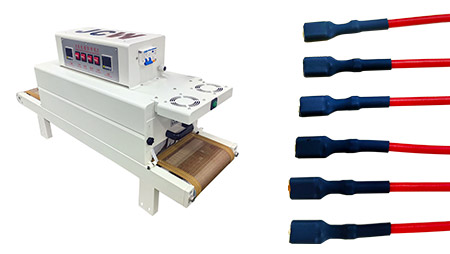

Efficient Shrinking Solution

The classic JCW-HSB64 heat shrinking machine features a pure white exterior. A new upgraded version is now available at the same price as the older model.

Model	JCW-HSB64 Benchtop Heat Shrinking Tunnel
Heating method	Infrared heating, Single/Double-sided heating
Heating pipe	Single-side heating: 4 PCS Double-side heating: 7 PCS
Oven dimensions	L 650 x W 300 x H 200 mm [ Default ] L 800 x W 480 x H 200 mm [ Optional ]
Heating area	L 650 x W 240 x 80 mm [ Default ] L 800 x W 240 x 80 mm [ Optional ]
Belt material	PTFE mesh conveyor
Feeding speed	0 - 6 m / min
Load-bearing capacity	Max 10 kg
Temperature display	Digital
Working life	＞ 10000 h
Temperature	260℃
Hot air fan	YES
Cooling station	Optional
Rated power	2800 W [ Default ] 3600 W [ Optional ]
Power supply	AC (110) 220 V ± 10%, 50 Hz
Dimensions	L 1080 x W 300 x H 650 mm [ Default ] L 1200 x W 480 x H 650 mm [ Optional ]
Weight	70 KG [ Default ]
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
