Fully-auto Coax Cable HV Cable Cut Strip Machine

JCW-CS500

Rotate cutter head, multi-layer stripping

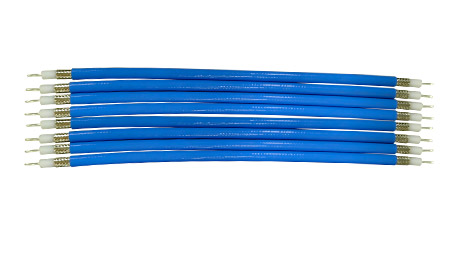

Coaxial cable, high voltage cable

Servo motorized, free-standing, compact design

Multi-layer stripping, max 6 layers

Open to MES system, cable prefeeder, cable rewinder

Inquire Now

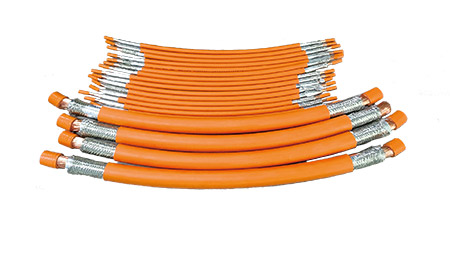

HV Cable Rotate Cutting Machine

Model	JCW-CS500 Fully-auto Coax Cable HV Cable Cut Strip Machine
Function	Coaxial cable, EV cable, rotary cutting, cut depth, strip length
Cable diameter	3 - 15 mm
Cutting length ( L )	50 - 999999 mm
Cutting length accuracy	±0.5 + Lx1‰
Stripping length	Front ( right ) side: 220 mm
Stripping length	Rear ( left ) side:130 mm
Production rate	400 - 800 pcs/h
Data library	99 programs
Rated power	2500 W
Multi-step strip	Max 6
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Wire pre feeder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Dimensions	L 1000 x W 600 x H 1350 mm
Weight	220 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
