JCW-CS03A
Cut Strip series belt-feed model
Single core wire only
Max wire cross section: 10mm²
Belt feeding structure
Compatible with wire winder
Supports MES function upgrade
High precision processing
Editable, storable and recallable programs
Cut & Strip

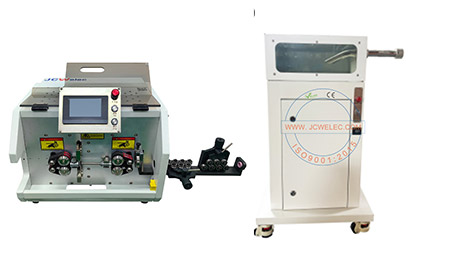

Cut Strip & Coil
Print Cut Strip & Wind
10mm² Belt-feeding Wire Cutting Stripping Machine
JCW-CS03A is a belt-feeding model within the Cut Strip series, built exclusively for single core wire up to 10mm².
The belt feeding design delivers precise wire transport and consistent feeding performance compared with roller feeding structures.
It supports connecting with a wire winder to arrange finished wires neatly.
This machine can also be upgraded into an MES-enabled version for smart factory digital production management.
It retains the core advantages of the CS03 platform: high precision for fine wires, editable, savable and recallable job programs, wire lack detection and flexible functional expansions.
JCW-CS03A is a reliable choice for workshops that require belt feeding and digital production connectivity.
| Model | JCW-CS03A Benchtop Wire Cutting and Stripping Machine |
| Function | Single wire,Wire measuring, Cut into length, Full stripping, Partial stripping, Wire lack sensor, Air blow, Length calibration |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 0.03 - 10 mm². O.D 8 mm |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( left ) full stripping: max 100 mm |
| Rear ( right ) full stripping: max 60 mm | |
| Production rate | 2000 pcs/h by [ varies upon wire cutting length ] |
| Data library | 100 programs |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Pre-feeder, robotic arm, conveyor belt, coiler |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | L 550 x W 480 x H 400 mm |
| Weight | 55 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
