Fully-auto Single-end Connector Housing Assembly System

JCW-CM10-ST

Inquire Now

Model	JCW-CM10-ST Fully-auto VH Connector Housing Assembly System

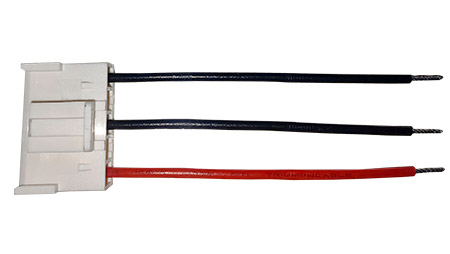

Function	Side A: wire stripping, terminal crimping, housing insertion. Side B: wire stripping, conductor twisting, fluxing & tinning.
Control system	Industrial computer, Window 7, English / Chinese
Wire range	AWG 26 - AWG 18
Cut length ( L )	35 - 1000 mm [ other lengths on request ]
Cut length accuracy	± { 0.2% x L + 1} mm
Strip length	0.5 - 10 mm
Twist length	1 - 10 mm
Tinning length	0.5 - 10 mm
Crimping press	Mitsubishi servo motorized
Crimping force	2 tons
Housing	VH 1.25 - VH 3.96
Product rate	3500 - 4800 sets/h [ depends on wire and housing ]
Detection	Wire run-out, terminal run-out, air pressure, CCD for housing connector insertion
Optional peripherals	CCD for detecting terminal appearance, CFM
Air supply	0.55 - 0.75 MPa [ clean and dry air ]
Rated power	2500 W
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 3000 x W 1470 x H 1700 mm
Weight	540 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
